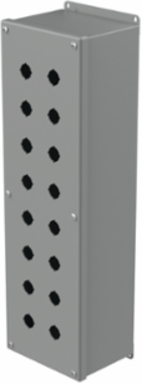

nVent Hoffman E16SPBXVM Extra-Deep Pushbutton Enclosure Type 12, Gray Steel, 16PB x 22.5mm, NEMA 12, IP65
- MPN: E16SPBXVM
- UPC: 783510130466
- PPN: HOF-E16SPBXVM
- UNSPSC: 39121326
CAD
$380.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Extra deep pre-cut pushbutton enclosures give the most room for deep contact blocks and wiring. This Extra-Deep Pushbutton Portrait Enclosure Type 12, E16SPBXVM item measures 16PBx22.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures 6.00 x 4.00 x 4.75 in. (152 x 102 x 121 mm) and larger have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 159 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Hole Quantity | 16 |
| Overall Dimensions (L x W) | 552 x 164 |
| NEMA Rating | 12 Indoor, dust-resistant |
| Number of Holes | 16 |
| Size | 16PB x 22.5mm |
| Height (H) | 527 |
|---|---|
| Depth (D) | 121 |
| Product Family | PushButton |
| Color Code | ANSI 61 |
| Hole Size (HS) | 22.5 |
| Mounting (G x H) | 540 x 137 |
| IP Rating | IP65 |
| Weight | 12 |
| Material | Steel |
| Color | Gray |
