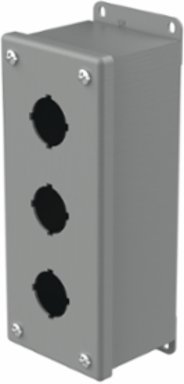

nVent Hoffman E3PB Pushbutton Enclosures Type 12, 3PBx30.5mm, Gray, Steel
- MPN: E3PB
- UPC: 783510580308
- PPN: HOF-E3PB
- UNSPSC: 39121326
CAD
$171.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Pre-cut pushbutton enclosures house and protect push buttons, lights and switches. This Pushbutton Enclosures Type 12, E3PB item measures 3PBx30.5mm with a material of Steel colored Gray.
Features
- Seams continuously welded and ground smooth
- Captivated cover screws thread into sealed wells
- Bonding provision on cover
- Grounding stud on body
- Oil-resistant gasket
- Factory stamped 4-way pushbutton holes
- Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 83 |
| Protection Rating | NEMA Type 12 |
| Finish | Powder Coated |
| Thickness (T) | 1.9 |
| Hole Quantity | 3 |
| Mounting (G x H) | 216 x 60 |
| Weight | 2.6 |
| Material | Steel |
| Color | Gray |
| Height (H) | 203 |
|---|---|
| Depth (D) | 70 |
| Product Family | PushButton |
| Color Code | ANSI 61 |
| Hole Size (HS) | 30.5 |
| Overall Dimensions (L x W) | 229 x 88 |
| IP Rating | IP65 |
| Number of Holes | 3 |
| Size | 3PB x 30.5mm |
| NEMA Rating | 12 Indoor, dust-resistant |
