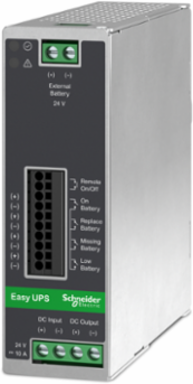

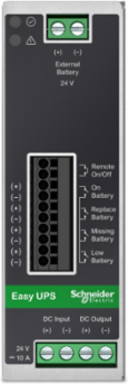

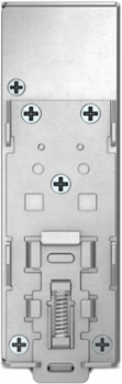

Schneider Electric BVS480XDPDR Easy UPS Control Module 24V DC, 20A, DIN Rail, 480W
- MPN: BVS480XDPDR
- UPC: 731304436959
- PPN: SCH-BVS480XDPDR
CAD
$342.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

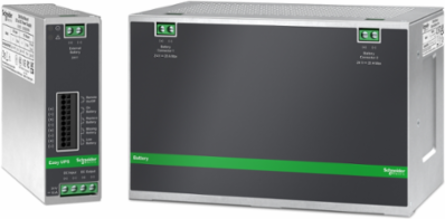

The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Documentation & Downloads
Specifications
Key Specifications
| Depth | 119 mm |
|---|
Physical Attributes
| Color | metal grey |
|---|
Complementary Attributes
| Maximum Input Current Per Phase | 20 A |
|---|---|
| Rated Power In W | 480 W |
| Maximum Output Current | 20 A |
|---|
Important Information Attributes
| Persona Type Ids | EUA, VR |
|---|---|
| Efficiency At Full Load | 21.6...28.8 V 24 V DC, 95 % |
| Carbon Footprint Of The Distribution Phase [A4] | 0.053495272727272725, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 13.373818181818182 |
| Local Publishable Date | 2026-03-26 |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | SPIBS |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Mounting Mode | DIN Rail Mount |
| Number Of Input Connectors | 1 terminal block 2-wire |
| Overload Operation | 60 seconds @ 130% and 30 seconds @ 145% |
| Product Or Component Type | power module |
| Returnability | Yes |
| Sustainable Packaging | No |
| Ups Size | S |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2025-30 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | The functional unit is the transmission of electricity between electrical/electronic equipment and a power source for a distance of 2.5m for up to 10A of current at 230V AC |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; High voltage; 2020; Asia Pacific, APAC |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 62 |
| Width Nominal | 40 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | Yes |
| Customs Code | 8504409580 |
| Persona Type Names | Consumer, IT Channel Partner |
|---|---|
| Certificate Agency | CE, TÜV |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.047185090909090906 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 5 kg CO2 eq., 4.963381818181818 |
| Local Data Status | Publishable |
| Pre Comm Date | 2022-01-25 |
| Stocking Flag | N |
| Device Type | UPS - Industrial UPS |
| Traceability | Yes |
| Cr Shelf Life | 24 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1712010_EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2124 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Acoustic Level | 40 dB |
| Maximum Input Current Per Phase | 20 A |
| Mounting Position | horizontal |
| Number Of Power Module | 1 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | User Manual |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 18 kg CO2 eq. |
| Waveform Type | DC |
| Pep Code | ENVPEP1712010EN |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0010-ed1.1-EN-2015 10 16 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 129 mm |
| Connections - Terminals | 1 2 pins |
| Package Weight(Lbs) | 521.000 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -15-50 °C, -15-50 °C |
|---|---|
| Take Back | Yes |
| China Rohs Regulation | X |
| Carbon Footprint | 18.459636363636363 |
| Environmental Disclosure | ENVPEP1712010EN |
| Ip Degree Of Protection | IP20 |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Storage Altitude | 0-3000 m |
| Pep Code | ENVPEP1712010EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Ambient Air Temperature For Storage | -15-70 °C, -15-70 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1712010_EN |
| Eu Rohs Directive | Compliant By Exemption |
| Operating Altitude | 0...9842.52 ft (0...3000 m) |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 0-95 % non-condensing |
| Storage Relative Humidity | 0-95 % non-condensing |
| Pep Verification Date | 2025-10-25 |
| Psr Version | PSR-0010-ed1.1-EN-2015 10 16 |
General Attributes
| Product Or Component Type | power module |
|---|
| Provided Equipment | User Manual |
|---|
ETIM
| ETIM 8 | EC002542 |
|---|
| ETIM 9 | EC002542 |
|---|
Output Attributes
| Maximum Output Current | 20 A |
|---|
| Output Voltage | 24 V DC |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 Years repair or replace |
|---|
| Warranty | 2 Years repair or replace |
|---|
Input Attributes
| Efficiency At Full Load | 21.6...28.8 V 24 V DC, 95 % |
|---|---|
| Main Input Voltage | 24 V DC |
| Input Protection Type | integrated fuse (not interchangeable), against reverse polarity, protected against short-circuit |
|---|
Batteries & Runtime Attributes
| Removable Battery | Yes |
|---|---|
| Battery Voltage | 24 V |
| Battery Type | external battery system |
|---|
