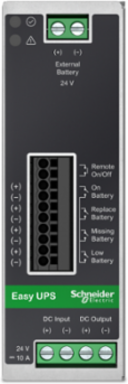

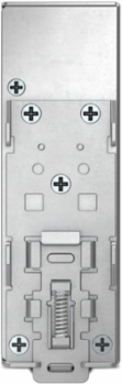

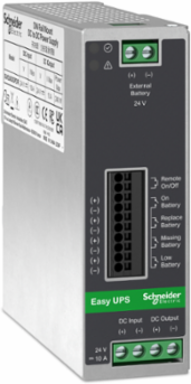

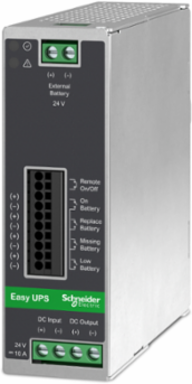

APC BVS480XDPDR Easy UPS control module, 24V DC-DC, DIN Rail, Industrial, 20A
- MPN: BVS480XDPDR
- UPC: 731304436959
- PPN: APC-BVS480XDPDR
CAD
$252.24
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Industrial UPS 24V DC DIN Rail is a part of the Schneider Electric's Easy UPS family. This model is a 480W UPS that offers DC input to DC output for industrial equipment support. It features 0-5V signaling relay contacts, up to 4 total external battery pack support, LED indicators and EPO switch for better control over the indutrial controls infrastructure. It comes with a 2-year standard warranty.
Features
- DC Input - DC Output to support industrial equipment such as PLCs, HMIs, Industrial PCs.
- Relay contacts for remote diagnostics using 0-5V signals.

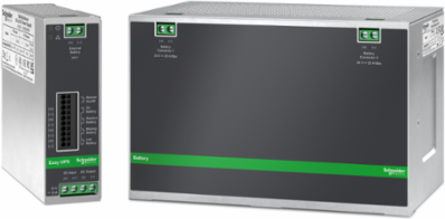

- External battery pack support (up to 4 battery packs) for additional runtime.
- LED indicators to check UPS status.
- EPO switch for immediate shutdown in the event of an emergency.
- Minimize downtime and help protect equipment.
- Reduces machine maintenance.
- Better control over industrial infrastructure.
Documentation & Downloads
Specifications
Sustainability
| TakeBack | Yes |
|---|---|
| Recycled metal content in percentage | 0 % |
| Packaging without single use plastic | No |
| Carbon Footprint | 18.459636363636363 |
|---|---|
| Packaging with recycled cardboard | Yes |
| Product contributes saved avoided emissions | No |
Weight, Height, Width, Depth
| Height | 5.08 in (129 mm) |
|---|---|
| Depth | 4.69 in (119 mm) |
| Width | 1.57 in (40 mm) |
|---|---|
| Weight | 1.1 lb(US) (0.5 kg) |
Conformance
| Rohs | Compliant By Exemption |
|---|---|
| Reach Compliance Date | 2026-02-01 |
| Removable Battery | YES |
| Reach | Reference contains Substances of Very High Concern above the threshold |
|---|---|
| Scip Number | 0e08a18f-3817-49e1-a0e2-b298526f0a43 |
Warranty
| Warranty | Core product: 24 month(s) |
|---|
