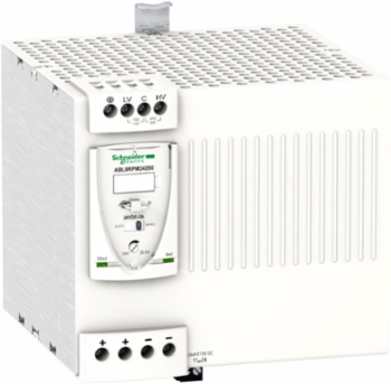

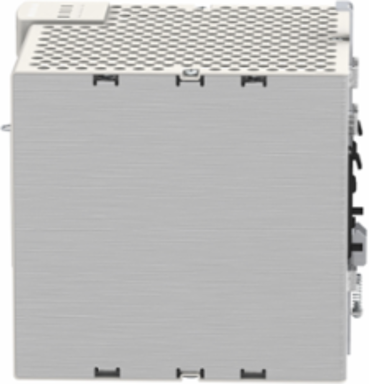

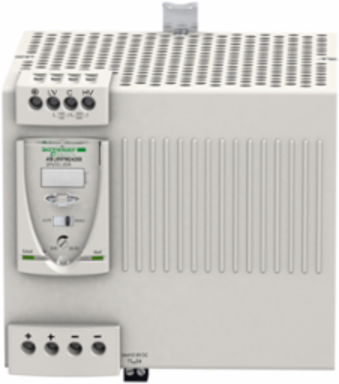

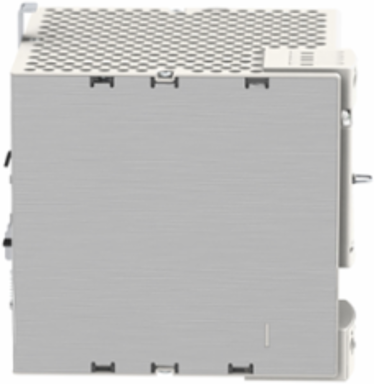

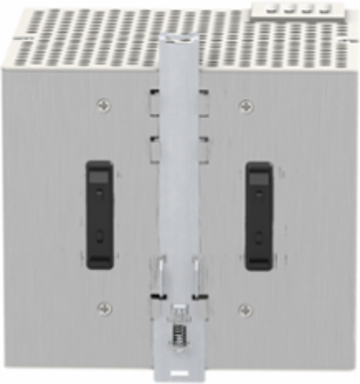

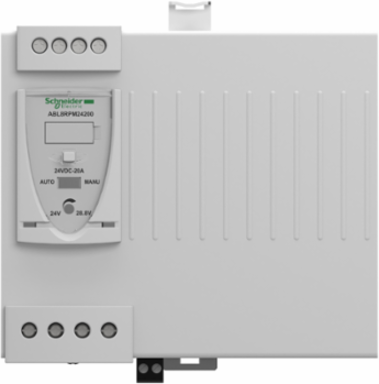

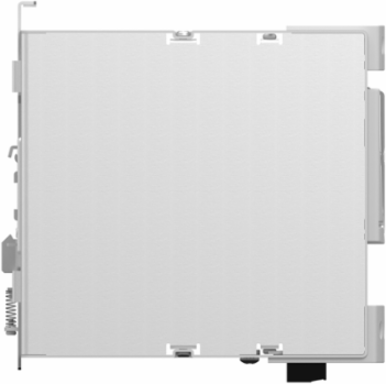

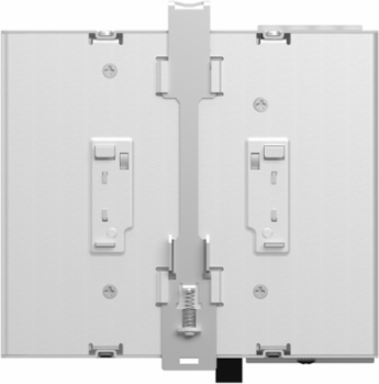

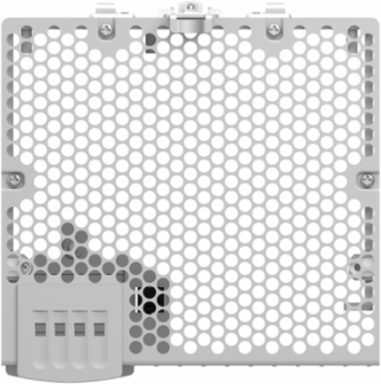

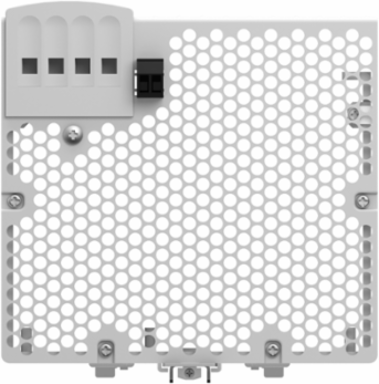

Schneider Electric ABL8RPM24200 Regulated Switch Power Supply 24V 20A 480W DIN Rail Mount
- MPN: ABL8RPM24200
- PPN: SCH-ABL8RPM24200
CAD
$730.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 20A at 24V DC and a rated power output of 480W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It has LED diagnostics indicator available in the front for troubleshooting instantly. It provides a power reserve allowing to deliver a current of 150% its nominal rating for a short time allows handling of simultaneous inrush current when starting a process. It installs on DIN rail and is 54mm-wide. It weighs 1,600kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD16 and GB2CD12 thermal magnetic circuit breakers The GB2CB07, GB2CD07, GB2DB07, GB2CS07, GB2CB06, GB2CD06, GB2DB06 and GB2CS06 thermal-magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, Philippines, United States

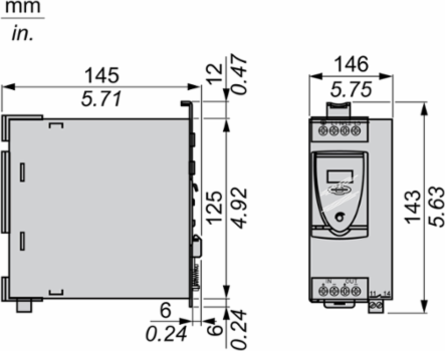

Depth145 mm
Complementary Attributes
- Rated Power In W
- 480 W
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Efficiency At Full Load
- 85...132 V AC, 170...264 V AC
- Mounting Support
- 35 x 7.5 mm symmetrical DIN rail, 35 x 15 mm symmetrical DIN rail
- Certificate Agency
- cCSAus, EAC, KC, RCM, UL
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI0612002EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1905
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Compatibility Code
- ABL8R
- Efficiency
- 88 %
- Marking
- CE
- Permissible Temporary Current Boost
- 1.5 x In for 4 s)
- Power Factor
- 0.68 at 240 V AC0.69 at 120 V AC
- Product Availability
- Stock - Normally stocked in distribution facility
- Provided Equipment
- power factor correction filter IEC 61000-3-2
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP0612002EN
- Width Nominal
- 146 mm
- Anti-harmonic Filter
- low frequency harmonic currents
- Package Weight(Lbs)
- 2.811 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Environmental Characteristicsafety conforming to EN/IEC 61204-3, EMC conforming to IEC 61000-6-1, EMC conforming to IEC 61000-6-3, EMC conforming to EN 55024, EMC conforming to IEC 61000-6-4, EMC conforming to EN/IEC 61204-3safety conforming to IEC 60950-1
SupplySELV IEC 60950-1, SELV IEC 60204-1, SELV IEC 60364-4-41
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Dielectric Strength2500 V with between input and ground3000 V with between input and output500 V with between output and ground
Inrush Current30 A
Operating Positionvertical
Power Dissipation In W57.6 W
Power Supply Typeregulated switch mode
Product Or Component Typepower supply
Range Of ProductModicon Power Supply
Status Led1 LED (green and red) output voltage1 LED (green, red and orange) output current
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal125 mm
Connections - Terminalsremovable screw terminal block 2 x 2.5 mm², diagnostic relayscrew type terminals 3 x 0.5...3 x 4 mm², 22 AWG...12 AWG) input connectionscrew type terminals 1 x 0.5...1 x 4 mm², 22 AWG...12 AWG) input ground connectionscrew type terminals 4 x 0.5...4 x 4 mm², 22 AWG...12 AWG) output connection
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409510
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), 50-60 °C with derating factor mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m), -25-50 °C without derating mounting position A < 6561.68 ft (2000 m)
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI0612002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Ip Degree Of ProtectionIP20 conforming to IEC 60529, IP10
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP0612002EN
Operating Altitude6561.68 ft (2000 m)
Packaging Without Single Use PlasticYes
Pep CodeENVPEP0612002EN
General Attributes
- Product Or Component Type
- power supply
- Range Of Product
- Modicon Power Supply
Provided Equipmentpower factor correction filter IEC 61000-3-2
ETIM
- ETIM 8
- EC002540
ETIM 9EC002540

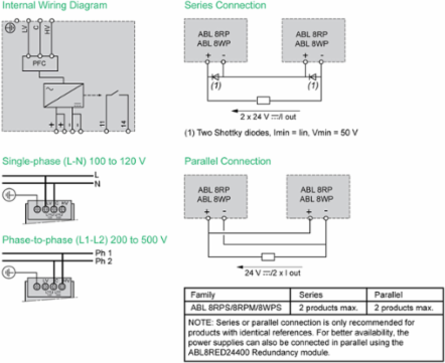

Output Attributes
- Output Coupling
- series, parallel
- Output Voltage
- 24 V DC
- Power Supply Output Current
- 20 A
Output Protection Typeagainst overload, protection technology: manual or automatic resetagainst overvoltage, protection technology: 30...32 V, manual reset, against short-circuits, protection technology: manual or automatic resetagainst undervoltage, protection technology: tripping if U < 21.6 Vthermal, protection technology: automatic reset
Output Voltage Limits24...28.8 V adjustable
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Efficiency At Full Load
- 85...132 V AC, 170...264 V AC
- Efficiency
- 88 %
Input Voltage100...120 V AC single phase N-L1, 200...240 V AC phase to phase L1-L2
