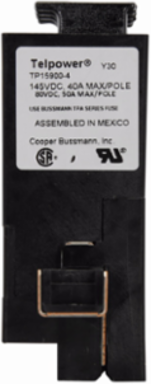

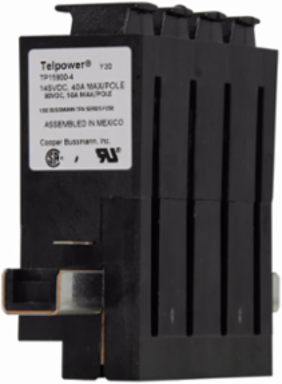

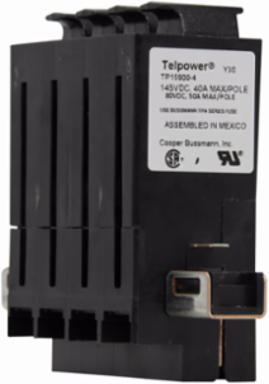

Bussmann TP15900-4W Eaton Bussmann series 1500 fuse disconnect switch, Modular design, With wago clamp, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50A at 80 Vdc, Fusible, Rear Access, Four-pole, Screwless terminal

Eaton Bussmann series 1500 fuse disconnect switch, Modular design, With wago clamp, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50A at 80 Vdc, Fusible, Rear Access, Four-pole, Screwless terminal
Eaton Bussmann series 1500 fuse disconnect switch, Modular design, With wago clamp, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50A at 80 Vdc, Fusible, Rear Access, Four-pole, Screwless terminal
Eaton Bussmann series 1500 fuse disconnect switch, Modular design, With wago clamp, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50A at 80 Vdc, Fusible, Rear Access, Four-pole, Screwless terminal
  • MPN: TP15900-4W
  • UPC: 051712587990
  • PPN: BUS-TP15900-4W

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$486.85/ EA

Description

Eaton Bussmann series 1500 fuse disconnect switch, Modular design, With wago clamp, 145 Vdc, 80 Vdc, 40A at 145 Vdc, 50A at 80 Vdc, Fusible, Rear Access, Four-pole, Screwless terminal

Specifications

General

UPC
051712587990
Product Height
4.1 IN
Product Weight
.67 LB
Compliances
CE Marked
Product Length/Depth4.78 IN
Product Width1.55 IN
WarrantyNot Applicable

Specifications

Special Features
Modular design, With wago clamp
Used With
Used with TPA Series Fuse
Operating Temperature
140°C
Amperage Rating
40A at 145 Vdc, 50A at 80 Vdc
TypeFusible, Rear Access
ConnectionScrewless terminal
Voltage Rating145 Vdc, 80 Vdc
Number of PolesFour-pole
