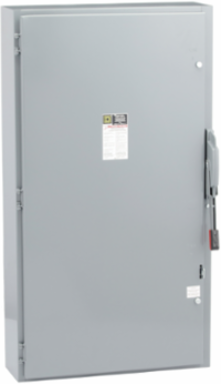

Square D CH365N Heavy Duty Fusible Safety Switch 400A, 600V AC/DC, 3 Poles, NEMA 1
- MPN: CH365N
- PPN: SCH-CH365N
CAD
$4005.02
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric CH365N Heavy Duty Fusible Safety Switch is an essential component for effective power distribution, designed to handle up to 400A at 600V AC/DC. This three-pole safety switch is built to deliver reliable performance in various industrial settings, ensuring a reliable disconnect between power sources and connected equipment. Encased in a NEMA 1 enclosure, it provides suitable protection for indoor applications, making it an ideal choice for facilities requiring robust safety measures in their electrical systems. With its solid construction and high-capacity handling, this safety switch is a dependable solution for maintaining safe operability in heavy-duty electrical applications.
Features
- Built with a rugged, NEMA 1 enclosure and rated for 400 Amps at 600V AC/DC, this heavy-duty safety switch is engineered to handle the intense electrical loads of large manufacturing plants and commercial facilities. It provides a high-reliability disconnect point for heavy machinery, ensuring your high-amperage systems operate safely under constant, demanding conditions.
- Featuring three poles and a factory-installed solid neutral, this switch streamlines the wiring process for 3-phase systems requiring a neutral connection. This all-in-one design eliminates the need for purchasing and mounting a separate neutral kit, saving valuable installation time and reducing the overall footprint of your electrical distribution setup.
- Designed to accommodate Class R, H, or K fuses, this switch provides a critical layer of overcurrent protection that interrupts dangerous short circuits before they reach your motors or sensitive controllers. This fusible design allows you to customize your protection level based on your specific coordination studies, preventing catastrophic equipment failure and expensive industrial downtime.
- The advanced mechanical interlock system prevents the enclosure door from being opened while the switch is in the "ON" position and prevents the switch from being turned on while the door is open. This fail-safe mechanism significantly reduces the risk of arc flash and accidental contact with live internal components, keeping your maintenance team compliant with NFPA 70E safety standards.
- Housed in a durable, powder-coated steel NEMA 1 cabinet, this disconnect is optimized for indoor protection against dust and accidental physical contact. The spacious internal gutter design provides ample room for bending large-gauge copper or aluminum conductors (up to 750 kcmil), making it the preferred choice for electrical contractors working on large-scale HVAC, data center, or elevator power feeds.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 10.13 in |
|---|
Complementary Attributes
| Line Rated Current | 400 A |
|---|
| Maximum Horse Power Rating | 350 hp at 600 V AC 50/60 Hz for 3 phase motors250 hp at 480 V AC 50/60 Hz for 3 phase motors125 hp at 240 V AC 50/60 Hz for 3 phase motors |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Motor Power Hp | 125 hp at 600 V AC 50/60 Hz for 3 phase motors100 hp at 480 V AC 50/60 Hz for 3 phase motors50 hp at 240 V AC 50/60 Hz for 3 phase motors, 50 hp at 600 V DC, 50 hp at 250 V DC |
| Carbon Footprint Of The Distribution Phase [A4] | 206.6835247288103, 207 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.19738341089815004, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 547 kg CO2 eq., 547.0206826529308 |
| Local Publishable Date | 2026-07-29 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Composition | neutral (factory installed) |
| Electrical Connection | lugs |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2503029EN |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 50.25 in |
| Certificate Agency | CSA |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 81.647 kg |
| Warranty (In Months) | 18 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 550-550 lbf.in 53.49-380.0 mm² (1/0 AWG...750 kcmil), 550-550 lbf.in 53.49-152.0 mm² (1/0 AWG...300 kcmil) |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 198 kg CO2 eq., 198.243155608447 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 417 kg CO2 eq., 416.73567065713723 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1906 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 1/0 AWG...750 kcmil copper or aluminium |
| Disconnector Device Type | fusible disconnect |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Returnability | No |
| Software Version | v6.2.4 |
| Total Lifecycle Carbon Footprint | 1 369 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity Mix; Low voltage; 2020; United States, US |
| Recyclability Potential In % | 90 |
| Width Nominal | 27.63 in |
| [Ue] Rated Operational Voltage | 600 V AC/DC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8537109170 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2503029EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-03-01 |
| Psr Version | PSR-0005-ed3-2023 06 06 |
| Halogene Performance | Halogen free plastic parts product |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 1368.8804170582234 |
| Eu Rohs Directive | Compliant By Exemption |
| Nema Degree Of Protection | NEMA 1 steel |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2503029EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
