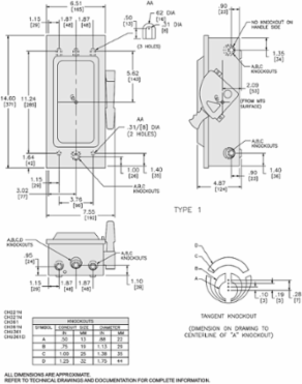

Square D CH221N Safety switch, heavy duty, fusible, 30A, 240VAC, 250VDC, 2 poles, 7.5HP, NEMA 1, neutral
- MPN: CH221N
- UPC: 785901994824
- PPN: SCH-CH221N
CAD
$259.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

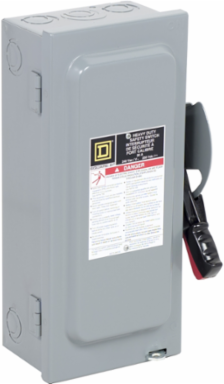

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. This fusible disconnect has a short circuit rating of either 10kA or 200kA depending on fuses used. This device is rated at 30 amps, two poles, 7.5 horse power, with a voltage of 240 VAC and 250 VDC. This device is Type 1 rated with a steel enclosure. This has factory installed/bonded neutral.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States, ZZ
Depth4.88 in
Complementary Attributes
- Maximum Horse Power Rating
- 7.5 hp at 240 V AC 50/60 Hz for 3 phase motors, 3 hp at 240 V AC 50/60 Hz for 1 phase motors, 2 hp at 120 V AC 50/60 Hz for 1 phase motors, 3 hp at 125 V DC
- Line Rated Current
- 30 A
Ue Rated Operational Voltage240 V AC, 250 V DC
Important Information Attributes

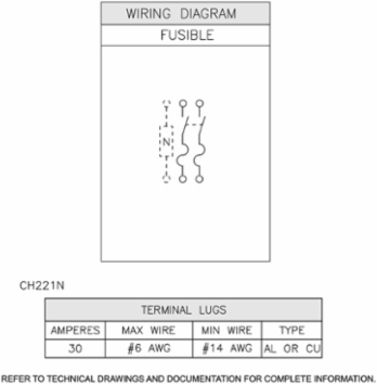

- Awg Gauge
- AWG 12...AWG 6 aluminium, AWG 14...AWG 6 copper
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² (AWG 6), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 35-35 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 8 kg CO2 eq., 8.37737677975239
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 20 kg CO2 eq., 19.867257005538374
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Device Composition
- neutral (factory installed)
- Electrical Connection
- lugs
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Returnability
- No
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 32 kg CO2 eq.
- Pep Code
- ENVPEP2305006EN
- Pep Verification Date
- 2023-06-06
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; US
- Height Nominal
- 14.6 in
- Certificate Agency
- CSA
Motor Power Hp3 hp at 240 V AC 50/60 Hz for 3 phase motors, 1.5 hp at 240 V AC 50/60 Hz for 1 phase motors, 0.5 hp at 120 V AC 50/60 Hz for 1 phase motors, 5 hp at 250 V DC, 2 hp at 125 V DC
Carbon Footprint Of The Distribution Phase A41.0835868545347127, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.3809816304021315, 0.4 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B62 kg CO2 eq., 2.1653887314188993
Local Publishable Date2026-05-08
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Kit IdentifierN
Disconnector Device Typefusible disconnect
Number Of Poles2
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Sustainable PackagingYes
Warranty In Months18
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; US
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; US
Recyclability Potential, In %89
Width Nominal6.5 in
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Carbon Footprint
- 31.874591001646507
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
