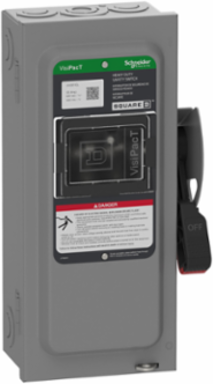

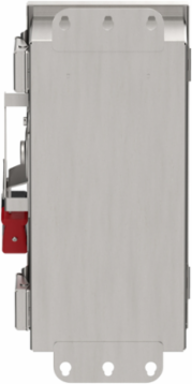

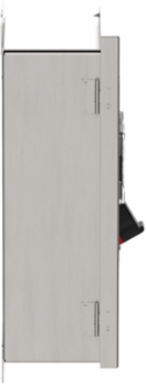

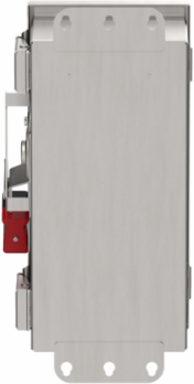

Square D VH361GL Heavy Duty Fused Safety Switch, 3-Pole, 30A, 600V, NEMA 1, 6.36 Inch Width
- MPN: VH361GL
- PPN: SCH-VH361GL
CAD
$267.06
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for robust power management, this heavy-duty fused safety switch from Schneider Electric ensures reliable operation in demanding environments. With a three-pole configuration rated at 30 amps and 600 volts, it provides essential overcurrent protection, accommodating various electrical applications. The NEMA 1 rating signifies its suitability for indoor use, making it an ideal choice for settings where dust and moisture are minimal. Its compact design, measuring 6.36 inches in width, allows for easy installation while optimizing space within your electrical system. This safety switch stands out for its combination of durability and functionality, providing peace of mind in power distribution.
Features

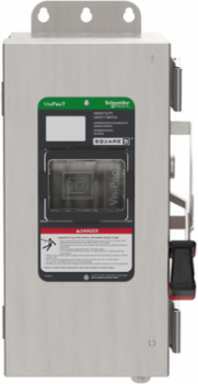

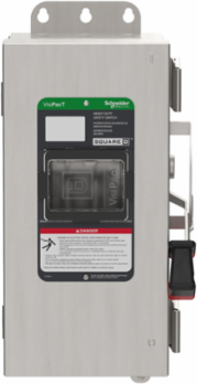

- The VH361GL is part of the modern VisiPacT series from Square D by Schneider Electric. This next-generation safety switch replaces the legacy H361GL model, offering the same footprint but with enhanced safety features, including a built-in viewing window that allows for quick visual verification of the switch blades without opening the door.
- This is a 3-pole, 3-wire, 30-Amp heavy-duty fused safety switch rated for up to 600V AC/DC. It is designed for demanding industrial and commercial applications, capable of handling motor loads from 5 hp up to 20 hp (depending on voltage) and featuring a short-circuit current rating of up to 200 kA when used with appropriate Class R or J fuses.
- This specific model features a NEMA 1 rated steel enclosure, which is strictly intended for indoor use in environments where dust and moisture are minimal. For outdoor or washdown applications, you would typically look for the "RB" (NEMA 3R) or "SS" (NEMA 4X Stainless) versions of this switch.

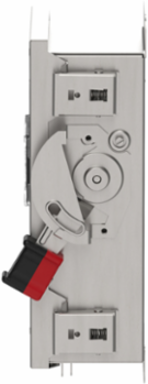

- Beyond the viewing window, the VH361GL includes a dual cover interlock that prevents the door from being opened while the switch is "ON" and prevents the switch from being turned "ON" while the door is open. It also features a high-visibility, color-coded red/black handle that can be padlocked in the "OFF" position for secure Lockout/Tagout (LOTO) procedures.
- The "GL" suffix in the part number indicates that this unit comes with factory-installed equipment ground lugs. It is designed for a 3-wire configuration, but a solid neutral kit can be field-installed if your application requires it. The lugs accommodate AWG 14 6 copper or AWG 12 6 aluminum conductors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth5.11 in
Complementary Attributes
- Line Rated Current
- 30 A
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Fuse Type
- H or K, R or J
- Tightening Torque
- 45-45 lbf.in 13.3-13.3 mm² (6 AWG), 40-40 lbf.in 8.367-8.367 mm² (8 AWG), 35-35 lbf.in 2.06-5.261 mm² (14 AWG...10 AWG)
- Carbon Footprint Of The Distribution Phase [A4]
- 1.1530080516702423, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.13590701769789323, 0.1 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.248016280353195
- Local Publishable Date
- 2026-06-23
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- heavy application
- Disconnector Device Type
- fusible disconnect
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Services
- factory installation
- Sustainable Packaging
- Yes
- Wiring Configuration
- 3-wire
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 600V and rated current 60A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 12, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential In %
- 83
- Width Nominal
- 6.36 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Package Weight(Lbs)
- 4 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Motor Power Hp5 hp at 480 V AC 50-60 Hz for 3 phase motors, 15 hp at 480 V AC 50-60 Hz for 3 phase motors7.5 hp at 600 V AC 50-60 Hz for 3 phase motors, 20 hp at 600 V AC 50-60 Hz for 3 phase motors, 15 hp at 600 V DC
Short-circuit Current10 kA for H, K, J or R without fuse rejection clips, 200 kA for R with fuse rejection clips, 200 kA for J
Carbon Footprint Of The End-of-life Phase [C1 To C4]9 kg CO2 eq., 9.213820047725156
Carbon Footprint Of The Manufacturing Phase [A1 To A3]23 kg CO2 eq., 23.4755747592267
Local Data StatusPublishable
Pre Comm Date2023-04-05
Stocking FlagN
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2530
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge12 AWG...6 AWG aluminium14 AWG...6 AWG copper
Device Compositionfield installed kit available
Electrical Connectionlugs
Number Of Poles3
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Software Versionv5.9.4
Total Lifecycle Carbon Footprint37 kg CO2 eq.
Pep CodeENVPEP2303036EN
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US

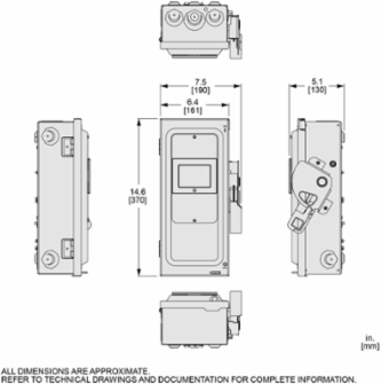

Height Nominal14.57 in
Certificate AgencyUL listed file E2875
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509045
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 37.22632615667318
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2303036EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2303036EN
Nema Degree Of ProtectionNEMA 1 steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-10-24
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
