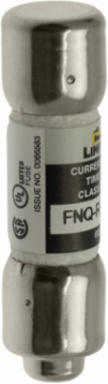

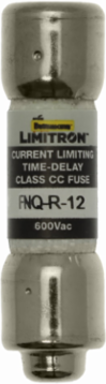

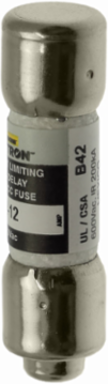

Bussmann FNQ-R-12 Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
  • MPN: FNQ-R-12
  • UPC: 051712497107
  • PPN: BUS-FNQ-R-12

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.57/ EA

Description

Eaton Bussmann series FNQ-R fuse, 12 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Features

  • Built with a physical rejection tip, this 13/32" x 1-1/2" cartridge fuse fits exclusively into standard or rejection-style Class CC fuse blocks and holders. This fail-safe mechanical footprint prevents the dangerous accidental insertion of lesser-rated supplementary fuses, guaranteeing that your industrial control panels remain code-compliant and safely configured.
  • roviding up to 10 times better current limitation than standard supplementary fuses, this dual-element fuse rapidly limits peak fault currents to protect vulnerable solid-state relays, PLCs, and contactors. Its immense 200 kAIC interrupting rating at 600 Vac easily satisfies NEC® Section 110.9 requirements, allowing integration into large-capacity industrial electrical infrastructure.
  • Constructed with a premium melamine housing and durable nickel-plated brass end caps, this industrial-grade fuse resists physical impact, internal arcing, and extreme heat degradation. The rugged design ensures low-resistance electrical connectivity and optimal heat dissipation, maximizing the operational lifespan of your control panels and machinery.
  • Fully UL Listed (Standard 248-4, Guide JDDZ) and CSA Certified, the FNQ-R-12 ensures your commercial or industrial electrical assemblies breeze through local safety inspections. Relying on factory-tested, industry-standard Bussmann overcurrent protection safeguards your facility’s operations, keeping your liability insurance and facility standards perfectly intact.

Specifications

Amperage
12 A
Interrupt Rating
200 kAIC
Response Time
12 sec at 200%
Connection
Ferrule end x ferrule end
Product Length/Depth
.41 in
Product Weight
.15 lb
Fuse Indicator
Non-indicating
Compliances
CE Marked
Voltage600 V
ClassClass CC
Fuse TypeCurrent-limiting high inrush time-delay
Product Height1.5 in
Product Width.41 in
MaterialMelamine tube
Special FeaturesRejection style
