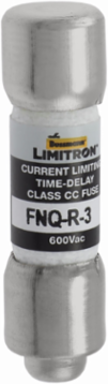

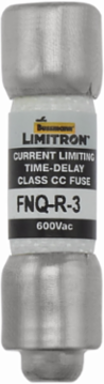

Bussmann FNQ-R-3 Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
  • MPN: FNQ-R-3
  • UPC: 051712147088
  • PPN: BUS-FNQ-R-3

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.47/ EA

Description

Eaton Bussmann series FNQ-R fuse, 3 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V

Features

  • Engineered with a specialized rejection-style tip, this 13/32" x 1-1/2" miniature cartridge fuse physically prevents the accidental installation of lower-rated or non-current-limiting supplemental fuses in your Class CC block. This fail-safe mechanical feature guarantees your industrial control panels remain properly rated, protecting personnel and switchgear from severe arc flash hazards caused by improper replacements.
  • Featuring Bussmann’s premium Limitron™ time-delay element, this fuse easily absorbs massive, harmless power surges—safely passing 12 seconds of current at 200% of its rating. By effectively riding through the initial starting currents of heavy-duty control transformers and industrial solenoids, it entirely eliminates frustrating nuisance blowing and keeps your automated production lines running without unnecessary maintenance downtime.
  • Strictly rated for 3 Amps at up to 600V AC, this highly reliable overcurrent protection device is specifically designed for primary and secondary transformer protection in motor control centers (MCCs). It delivers highly responsive, localized defense for your sensitive electrical components, safeguarding expensive programmable logic controllers (PLCs) and control relays from destructive thermal damage.
  • Boasting a massive 200,000 Amp Short Circuit Current Rating (SCCR), this high-performance current-limiting fuse instantly isolates catastrophic fault currents before they can melt panel wiring or start electrical fires. Fully UL Listed and CSA Certified, relying on this factory-tested Eaton Bussmann component ensures your facility's electrical distribution system easily passes rigorous building code inspections.

Specifications

Amperage
3 A
Interrupting Rating
200 kAIC
Type
Current-limiting high inrush time-delay fuse
Connection
Ferrule end x ferrule end
Width
0.41 in
Material
Melamine tube
Fuse Indicator
Non-indicating
Compliance
CE Marked
Voltage600 V
ClassClass CC
Response Time12 sec at 200%
Height0.41 in
Length1.5 in
Product Weight0.15 lb
Special FeaturesRejection style
