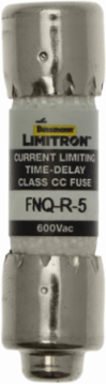

Bussmann FNQ-R-5 Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V

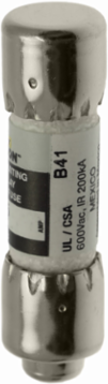

Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V

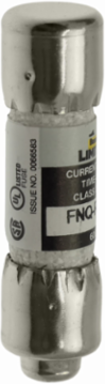

Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V

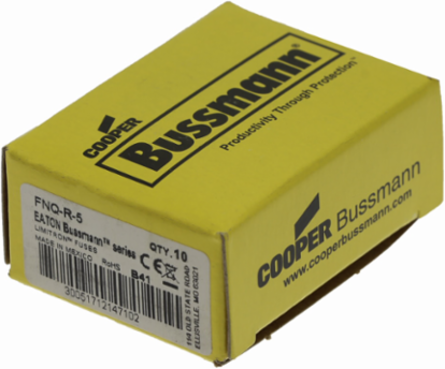

Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V
Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V
  • MPN: FNQ-R-5
  • UPC: 051712147101
  • PPN: BUS-FNQ-R-5

Spec sheet

In Stock

Company Stock:

00

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$18.68/ EA

Description

Current-limiting Time-delay Fuse, 5 A, 200 kAIC, 12 sec at 200%, 600 V

Features

  • The Bussmann FNQ-R-5 is a Class CC Limitron™ fuse, specifically engineered for high-performance "Branch Circuit" protection. It is a current-limiting device, meaning it reacts within milliseconds to "clamp" a short circuit before the current can reach its full destructive peak. This is critical for meeting Canadian Electrical Code (CEC) requirements for protecting sensitive control transformers and industrial automation components.
  • As a Class CC fuse, the FNQ-R-5 features a specialized physical rejection tip. This ensures it can only be installed in a dedicated Class CC fuse holder (like the Bussmann CHCC series), preventing the accidental installation of standard "midget" fuses that lack the high interrupting rating and current-limiting capabilities required by code for branch circuit protection.
  • Featuring Time-Delay characteristics, this 5-Amp fuse is specifically optimized to handle the massive momentary current surges (inrush) common when powering up control transformers. It provides a minimum 12-second delay at 200% of its rated current, allowing equipment to start without "nuisance blowing" while still offering rapid response to dangerous faults.
  • The FNQ-R-5 is fully rated for 600V AC and boasts a massive 200,000 Amp Interrupting Rating (AIR). This ultra-high fault capacity allows it to be used safely in virtually any industrial environment in Canada, ensuring the fuse will safely quench the arc even when connected to a high-energy service entrance.
  • The Class CC size (13/32" x 1-1/2") is the smallest branch-circuit rated fuse available. This allows Canadian panel builders to provide heavy-duty protection in a very small footprint, enabling the design of more compact and cost-effective control cabinets for HVAC, manufacturing, and automation systems.

Specifications

Interrupt Rating
200kA Vac RMS
Amperage
5 A
Fuse Class
Class CC
Connection Type
Ferrule end x ferrule end
Dimensions Length
1.5 in
Weight
0.15 lb
Response Time12 sec at 200%
Voltage Rating600 V
Fuse TypeCurrent-limiting, time-delay
MaterialMelamine tube
Dimensions Diameter0.41 in
ComplianceCE Marked
