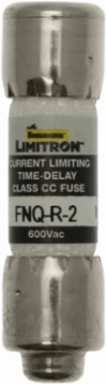

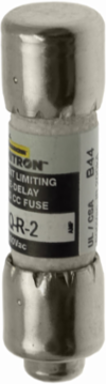

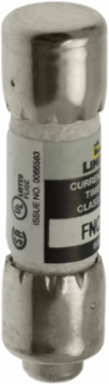

Bussmann FNQ-R-2 Eaton Bussmann series FNQ-R fuse, 2 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
- MPN: FNQ-R-2
- UPC: 051712147064
- PPN: BUS-FNQ-R-2
CAD
$18.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann series FNQ-R fuse, 2 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Features
- Designed with a specialized rejection tip, this Class CC fuse is engineered to fit exclusively into Class CC holders, preventing the dangerous installation of lower-rated supplemental fuses. This mechanical fail-safe ensures your control circuits maintain their high 200kA Short Circuit Current Rating (SCCR), keeping your industrial panel fully compliant with NEC® Article 110.10 requirements.
- Specifically optimized for the intense inductive loads found in small motor circuits and control transformers, the FNQ-R-2 absorbs massive initial power surges without "nuisance blowing." By providing a 12-second minimum time-delay at 200% of the 2-Amp rating, it keeps your automated machinery running through startup spikes while still delivering precision protection against sustained overloads.
- Built to withstand rigorous 600V AC environments, this 2-Amp fuse is the gold standard for protecting industrial control sub-circuits and branch circuit components. The high voltage overhead provides a critical safety margin for 480V and 600V systems, ensuring that even in high-energy fault conditions, the arc is safely extinguished within the melamine tube.
- s a true current-limiting device, the FNQ-R-2 reacts with extreme speed to clear short circuits, significantly reducing the "let-through" energy that can destroy contactors, relays, and PLCs. This proactive protection extends the lifespan of your expensive automation hardware and prevents catastrophic thermal damage during a phase-to-ground or phase-to-phase fault.
Documentation & Downloads
Specifications
Additional
- Amperage
- 2 A
- Interrupting Rating
- 200 kAIC
- Fuse Type
- Current-limiting high inrush time-delay, Class CC
- Product Height
- 1.5 in
- Product Length/Depth
- 0.41 in
- Fuse Indicator
- Non-indicating
- Compliance
- UL Listed, CSA Certified, CE Marked, RoHS Compliant
Voltage600 Vac
Response Time12 sec at 200%
ConnectionFerrule end x ferrule end
Product Width0.41 in
MaterialMelamine tube
Special FeaturesRejection style
