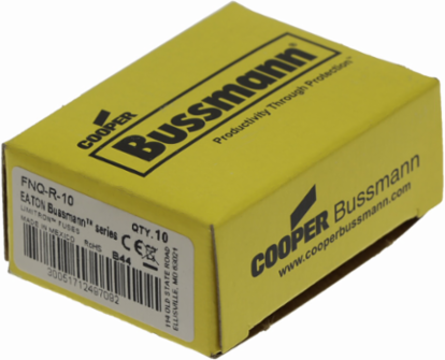

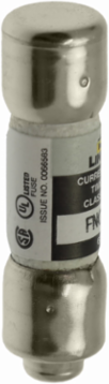

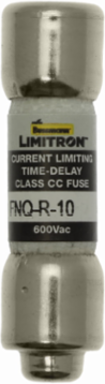

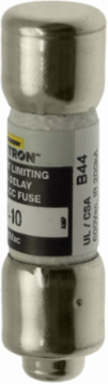

Bussmann FNQ-R-10 Eaton Bussmann series FNQ-R fuse, 10 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Bussmann FNQ-R-10 Eaton Bussmann series FNQ-R fuse, 10 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
- MPN: FNQ-R-10
- UPC: 051712497091
- PPN: BUS-FNQ-R-10
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$19.68/ EA
Description
Eaton Bussmann series FNQ-R fuse, 10 A, Class CC, Non-indicating, Ferrule end x ferrule end, 12 sec at 200%, 200 kAIC, Melamine tube, Standard, 600 V
Features
- Engineered with a specialized Class CC rejection footprint, this 13/32" x 1-1/2" cartridge fuse physically prevents the accidental insertion of lower-rated, non-current-limiting supplemental fuses into your control blocks. This fail-safe mechanical feature guarantees your industrial electrical panels remain strictly code-compliant and safely rated to handle high-fault commercial environments.
- Featuring a highly calibrated time-delay characteristic (12 seconds minimum at 200% of rated current), this 10-Amp Limitron® series fuse safely absorbs harmless inductive surges during control power transformer and small motor startups. By eliminating expensive and frustrating nuisance blowing, it keeps your critical HVAC systems and motor control circuits running smoothly without sacrificing heavy-duty overcurrent defense.
- Rated for a full 600V AC, this highly efficient current-limiting fuse delivers a massive 200,000 Amp Interrupting Rating (IR) to isolate catastrophic electrical faults incredibly fast. By rapidly restricting let-through current, it significantly reduces destructive thermal and magnetic energy, actively protecting your expensive relays, PLCs, and contactors from severe damage while minimizing facility downtime.
- Fully UL Listed to standard 248-4 and CSA Certified for strict branch circuit protection, this industrial-grade safety device is built to satisfy rigorous North American electrical codes like NEC Article 430. Utilizing factory-tested, reliable Eaton Bussmann hardware ensures highly predictable performance across demanding manufacturing operations, guaranteeing successful safety inspections and a secure workplace for maintenance crews.
Specifications
- Amperage
- 10 A
- Interrupting Rating
- 200 kAIC
- Fuse Class
- Class CC
- Connection
- Ferrule end x ferrule end
- Product Width
- .41 in
- Product Weight
- .15 lb
- Fuse Indicator
- Non-indicating
- Special Features
- Rejection style
Voltage600 V
Response Time12 sec at 200%
Fuse TypeCurrent-limiting high inrush time-delay fuse
Product Length1.5 in
Product Height.41 in
MaterialMelamine tube
ComplianceCE Marked
