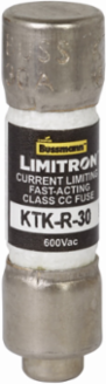

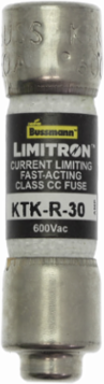

Bussmann KTK-R-30 LIMITRON Fast-acting Fuse 30 A Class CC 1.5 Inch x 0.41 Inch 200 kAIC 600 V
- MPN: KTK-R-30
- UPC: 051712420747
- PPN: BUS-KTK-R-30
CAD
$15.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LIMITRON Fast-acting Fuse 30 A Class CC 1.5 Inch x 0.41 Inch 200 kAIC 600 V
Features
- Engineered with a precise Class CC rejection tip, this fuse physically prevents the accidental installation of lower-rated or incorrect fuse types into your safety switches. This specialized mechanical footprint guarantees that your control circuits remain properly matched to code, safeguarding sensitive industrial control components from catastrophic fault currents.
- Boasting an exceptional 200,000-amp interrupting rating at 600V AC, this current-limiting fuse safely opens under massive electrical faults before downstream components can sustain damage. This high-capacity performance profile prevents catastrophic panel blowouts, keeping facility infrastructure compliant with stringent OSHA and NEC® safety regulations.
- Designed with a highly responsive, fast-acting internal element, this fuse delivers near-instantaneous clear times when experiencing overcurrent events. This rapid clearing speed makes it ideal for protecting non-inductive loads, lighting ballasts, and terminal control circuits where time-delay characteristics are not desired, preventing localized circuit meltdowns.
- Measuring exactly 13/32 in times 1-1/2 in (10 times 38 mm), this industrial midget-sized fuse delivers high-voltage protection within a heavily minimized physical layout. This standardized footprint allows panel builders to conserve valuable DIN-rail real estate inside compact control cabinets while still achieving maximum overcurrent protection.
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Interrupt Rating
- 200 kAIC
- Fuse Type
- LIMITRON Fast-acting, current-limiting
- Width
- .41 in
- Weight
- .18 lb
- Connection
- Ferrule end x ferrule end
- Special Features
- Rejection style
- Compliance
- CE Marked, RoHS Compliant, UL Listed, CSA Certified
Voltage600 V
ClassClass CC
Length1.5 in
Height.41 in
MaterialMelamine tube
Fuse IndicatorNon-indicating
Number of ElementsDual
