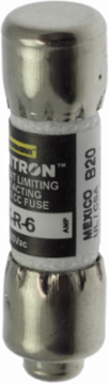

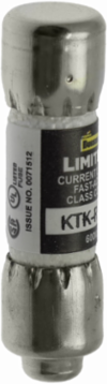

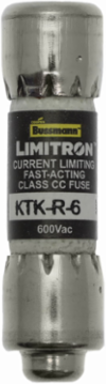

Bussmann KTK-R-6 LIMITRON Fast-Acting Fuse, 6 A, Class CC, 200 kAIC, 600 V, Ferrule End x Ferrule End
- MPN: KTK-R-6
- UPC: 051712420655
- PPN: BUS-KTK-R-6
CAD
$16.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LIMITRON Fast-Acting Fuse, 6 A, Class CC, 200 kAIC, 600 V, Ferrule End x Ferrule End
Features
- Designed with a specialized physical rejection tip, this Class CC fuse delivers a perfect mechanical fit into code-compliant branch circuit holders like the Bussmann BC Series. This physical guard prevents the dangerous accidental insertion of lower-rated or standard midget fuses, ensuring your automated equipment remains properly protected and completely compliant with NEC Article 240.24 requirements.
- Engineered with an advanced, fast-acting response profile under overcurrent conditions, this 6-amp element opens rapidly to isolate faults before heat can damage delicate downstream components. It is explicitly optimized to protect industrial control circuits, lighting loops, and small motor-control transformers from catastrophic thermal breakdown without causing premature aging of the system.
- Boasting a maximum interrupting rating of 200,000 Amps RMS Symmetrical at 600V AC, this compact fuse provides superior short-circuit protection in high-fault environments. The high capacity ensures that even under severe short-circuit conditions, the fuse will safely contain and extinguish the electrical arc within its melamine tube, protecting nearby workers and keeping panel enclosures intact.
- Measuring just 1-1/2 in times 13/32 in (10 times 38 mm), this fuse packs heavy-duty current limitation into a standard, highly compact footprint. This enables industrial panel builders and automation engineers to maximize space on DIN-rail configurations, allowing for tighter component spacing without compromising on crucial electrical safety margins.
Documentation & Downloads
Specifications
Additional
- Amperage
- 6 A
- Interrupting Rating
- 200 kAIC
- Size
- 1.5 in x 0.41 in
- Material
- Melamine tube
- Fuse Indicator
- Non-indicating
Voltage600 V
Fuse TypeFast-acting
ConnectionFerrule end x ferrule end
ClassClass CC
ComplianceUL Listed, CSA Certified, CE Marked, RoHS Compliant
