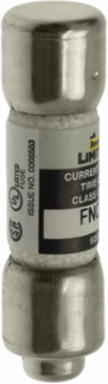

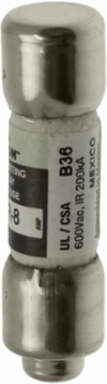

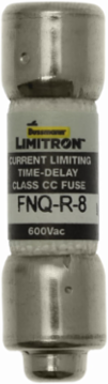

Current-Limiting High Inrush Time-Delay Fuse, 8 A, 600 V, 200 kAIC, Ferrule End

Current-Limiting High Inrush Time-Delay Fuse, 8 A, 600 V, 200 kAIC, Ferrule End - https://images.province-electric.com/BUS-FNQ-R-8/eaton-bussmann-series-fnq-r-medium-alt-ayih.webp

Documentation & Downloads

Bussmann FNQ-R-8 Current-Limiting High Inrush Time-Delay Fuse, 8 A, 600 V, 200 kAIC, Ferrule End

MPN: FNQ-R-8
UPC: 051712497060
PPN: BUS-FNQ-R-8

CAD

$20.47

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Current-Limiting High Inrush Time-Delay Fuse, 8 A, 600 V, 200 kAIC, Ferrule End

Features

Measuring a compact 13/32" x 1-1/2", this current-limiting fuse features a specialized rejection-style tip designed exclusively for Class CC holders and disconnect switches. This critical physical safeguard prevents the dangerous mistake of installing under-rated midget fuses into high-fault industrial control panels, ensuring your electrical enclosures remain strictly NEC compliant and safe from catastrophic failures.
Engineered with a robust time-delay characteristic, this 8-amp Limitron series fuse safely absorbs the harmless, temporary power surges generated by control circuit transformers and solenoids during startup. This intelligent design completely eliminates expensive factory downtime caused by nuisance blowing, while still providing highly sensitive, rapid protection against sustained overloads.
Rated for a full 600V AC with a massive 200,000 Amp short circuit current rating (SCCR), this highly efficient fuse rapidly clears severe electrical faults before they can cause destructive thermal or magnetic damage. By restricting let-through currents, it actively protects expensive downstream switchgear, motor controllers, and personnel, minimizing equipment repair costs and serious workplace hazards.
Fully UL Listed to Standard 248-4 and CSA Certified for commercial and industrial power distribution, this Eaton Bussmann component ensures your motor control centers pass strict local safety inspections. Relying on factory-tested, industry-standard overcurrent protection guarantees highly reliable performance across harsh manufacturing environments and keeps your facility's operational liability insurance strictly valid.

Documentation & Downloads

Specifications

Additional

Amperage: 8 A

Interrupting Rating: 200 kA

Length: 1.5 in

Weight: 0.15 lb

Connection: Ferrule end x ferrule end

Fuse Indicator: Non-indicating

Special Features: Rejection style

Voltage Rating600 V

Response Time12 sec at 200%

Diameter0.41 in

MaterialMelamine tube

Fuse TypeCurrent-limiting high inrush time-delay

ClassClass CC

CompliancesRoHS Compliant, UL Listed, CSA Certified, CE
