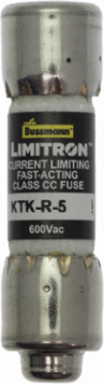

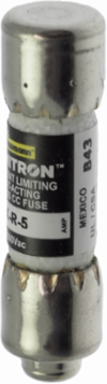

Bussmann KTK-R-5 LIMITRON Fast-acting Fuse 5 A Class CC 200 kAIC 600 V Ferrule End
- MPN: KTK-R-5
- UPC: 051712420648
- PPN: BUS-KTK-R-5
CAD
$15.43
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LIMITRON Fast-acting Fuse 5 A Class CC 200 kAIC 600 V Ferrule End
Features
- Featuring a specialized Class CC rejection tip, this KTK-R series fuse is physically designed to fit exclusively into code-compliant rejection-style fuse holders. This fail-safe geometry blocks the dangerous installation of lower-rated or standard midget fuses, guaranteeing your automated machinery, branch circuits, and personnel remain continuously protected against severe electrical faults.
- Engineered with an exceptional 200,000 A interrupting rating at 600V AC, this current-limiting fuse safely contains and isolates massive short-circuit energy before it can damage downstream components. This heavy-duty current limitation minimizes destructive arc-flash energy, keeping your industrial control panels online and ensuring compliance with stringent OSHA and NEC® workplace safety standards.
- Utilizing a precision-engineered, fast-acting internal element, this 5-Amp fuse responds instantly to overcurrent spikes without delay. This rapid clearing speed makes it the ideal choice for protecting vulnerable control transformers, variable frequency drive (VFD) inputs, and delicate instrumentation circuits from sudden, destructive thermal overload.
- Maintaining standard Midget dimensions of 1-1/2 in times 13/32 in (10 times 38 mm), this fuse delivers maximum high-voltage protection within a minimal physical footprint. It allows electrical contractors and panel builders to pack high-density circuit protection onto standard DIN rails, making it easy to retrofit existing layouts or build ultra-compact modern control boxes.
Documentation & Downloads
Specifications
Additional
- Amperage
- 5 A
- Interrupt Rating
- 200 kAIC
- Fuse Type
- Fast-acting
- Width
- 0.001 in
- Material
- Melamine tube
- Connection
- Ferrule end x ferrule end
Voltage600 V
ClassClass CC
Length0.001 in
Weight0.15 lb
Fuse IndicatorNon-indicating
ComplianceUL Listed, CSA Certified, CE Marked, RoHS Compliant
