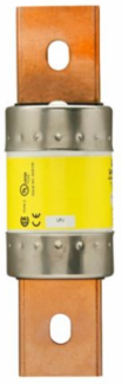

Bussmann LPJ-350SP Class J Low-Peak Fuse, 350 A, Time Delay, 300 kAIC at 600 V, Dual
- MPN: LPJ-350SP
- UPC: 051712522830
- PPN: BUS-LPJ-350SP
CAD
$314.32
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Eaton Bussmann Series Class J fuse, LPJ, time-delay, dual-element current limiting fuse, 350 A, non-idicating fuse, interrupting rating of 300 kA at 600 Vac and 100 kA at 300 Vdc
Features
- With an industry-leading interrupting rating of 300 kA at 600 VAC and 100 kA at 300 VDC, this Class J current-limiting fuse safely isolates massive electrical faults.
- Engineered with a dual-element architecture, this Low-Peak fuse provides a minimum 10-second time delay at 500% of its 350A rated current. This allows the system to easily absorb temporary inrush currents and transient surges from heavy industrial motors or transformers, eliminating nuisance blowing and avoiding costly plant downtime.
- Designed with standard Class J rejection dimensions measuring 2 inches in diameter and 7.13 inches in length, this cartridge fuse features robust bolted blade terminals for a secure, low-resistance mechanical connection. Its unique physical footprint strictly prevents the accidental installation of fuses with lesser voltage or interrupting capacities, ensuring total system safety compliance.
Documentation & Downloads
Specifications
Additional
- Amperage
- 350 A
- Interrupt Rating
- 300 kAIC at 600 Vac, 100 kAIC Vdc
- Fuse Type
- Time Delay, Current-limiting
- Class
- Class J
- Product Length/Depth
- 7.13 in
- Product Height
- 2 in
- Fuse Indicator
- Non-indicating
Voltage Rating600 Vac, 300 Vdc
Response Time10 sec at 500%
Number of ElementsDual
ConnectionBolted blade end x bolted blade end
Product Width2 in
Product Weight1.5 lb
ComplianceCE Marked, RoHS Compliant
