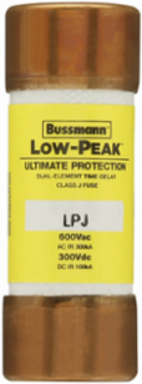

Low-Peak Fuse, Class J, 6 A, Time Delay, Ferrule End x Ferrule End, 300 kAIC at 600 Vac

Low-Peak Fuse, Class J, 6 A, Time Delay, Ferrule End x Ferrule End, 300 kAIC at 600 Vac - https://images.province-electric.com/BUS-LPJ-6SP/eaton-bussmann-series-lpj-medium-alt-pfic.webp

Documentation & Downloads

Bussmann LPJ-6SP Low-Peak Fuse, Class J, 6 A, Time Delay, Ferrule End x Ferrule End, 300 kAIC at 600 Vac

MPN: LPJ-6SP
UPC: 051712523264
PPN: BUS-LPJ-6SP

CAD

$24.10

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

Low-Peak Fuse, Class J, 6 A, Time Delay, Ferrule End x Ferrule End, 300 kAIC at 600 Vac

Features

The Bussmann LPJ-6SP is a Class J Low-Peak™ fuse, designed to provide industry-leading current limitation. In the event of a short circuit, it reacts in less than 0.008 seconds to "clamp" the fault energy before it can reach its full destructive potential. This is essential for protecting sensitive components like PLCs, small VFDs, and solid-state relays in Canadian industrial panels, often allowing for a higher Short-Circuit Current Rating (SCCR) for the entire system.
Despite its 6-Amp rating, this fuse features advanced dual-element, time-delay technology. It is specifically engineered to ignore the heavy momentary surges associated with small motor starts and control transformer inrush. It provides a minimum 10-second delay at 500% of its rated current, preventing "nuisance blowing" during equipment startup while still offering high-speed protection against dangerous overloads.
The LPJ-6SP is fully rated for 600V AC (and 300V DC) and features a massive 300,000 Amp Interrupting Rating (AIR). This allows it to be used safely in virtually any Canadian industrial or commercial facility, even when connected to a high-energy service entrance. It ensures your power distribution remains secure and fully compliant with the Canadian Electrical Code (CEC).
The Class J footprint is significantly more compact than equivalent Class R or Class H fuses. This smaller size allows Canadian panel builders to use more compact fuse blocks and disconnect switches, saving valuable interior "real estate" in electrical enclosures without sacrificing the high-tier interrupting performance required for industrial applications.

Documentation & Downloads

Specifications

Additional

Amperage: 6 A

Interrupting Rating: 300 kAIC at 600 Vac, 100 kA at 300 Vdc

Fuse Type: Time delay, Dual Element, Current Limiting

Connection Type: Ferrule end x ferrule end

Diameter: .81 in

Fuse Indicator: Non-indicating

Voltage600 Vac, 300 Vdc

ClassClass J

Response TimeMinimum 10 seconds at 500% rated current

Length2.25 in

Weight.19 lb

CompliancecULus Listed, UL 248-8, CSA Certified, CE Marked, RoHS
