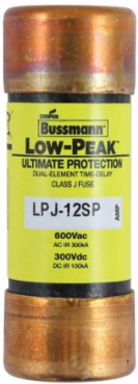

Bussmann LPJ-12SP Low-Peak Fuse 12 A, Dual Class J, Time Delay, 300 kAIC at 600 V
- MPN: LPJ-12SP
- UPC: 051712522748
- PPN: BUS-LPJ-12SP
CAD
$23.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low-Peak Fuse 12 A, Dual Class J, Time Delay, 300 kAIC at 600 V
Features
- The Bussmann LPJ-12SP is a premium Class J Low-Peak™ fuse designed for high-tier circuit protection. Its advanced current-limiting engineering reacts in less than 0.008 seconds during a fault, "clamping" short-circuit energy before it reaches downstream components. This is a critical feature for increasing the Short-Circuit Current Rating (SCCR) of Canadian industrial control panels.
- Featuring advanced dual-element, time-delay technology, this 12-Amp fuse provides a minimum 10-second delay at 500% of its rated current. This allows the fuse to ignore the massive momentary surges associated with small 3-phase motor starts and control transformer inrush, preventing "nuisance blowing" and ensuring high uptime for automated machinery.
- Following strict Bussmann nomenclature, the LPJ-12SP is the non-indicating version (the "SPI" suffix is required for a visual window). This makes it a rugged, cost-effective solution for installations that utilize indicating fuse blocks or for high-vibration applications where a solid-body construction is preferred.
- This fuse is fully rated for 600V AC (and 300V DC) with a massive 300,000 Amp Interrupting Rating (AIR). This ultra-high fault capacity ensures the fuse can safely quench the most severe electrical arcs, making it fully compliant for use in heavy industrial environments, mines, and commercial facilities across Canada.
Documentation & Downloads
Specifications
Additional
- Amperage
- 12 A
- Interrupting Rating
- 300 kAIC at 600 Vac
- Class
- Class J
- Fuse Type
- Time delay
- Product Length/Depth
- 2.25 in
- Product Height
- .81 in
- Connection
- Ferrule end x ferrule end
- Compliances
- cULus Listed, UL 248-8, CSA C22.2 No. 248.8, CE, RoHS Compliant
Voltage600 Vac, 300 Vdc
Time Delay10 sec at 500%
Number of ElementsDual
Response Time10 seconds minimum at 500% rated current
Product Width.81 in
Product Weight.19 lb
Fuse IndicatorNon-indicating
