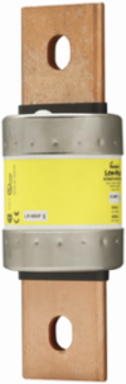

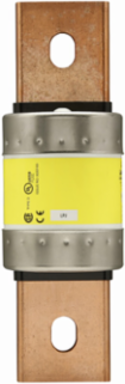

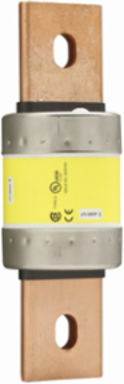

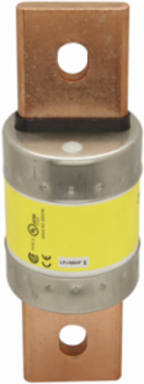

Bussmann LPJ-600SP Low-Peak Fuse, 600 A, Dual, Class J, Time Delay, 300 kAIC at 600 V
- MPN: LPJ-600SP
- UPC: 051712522878
- PPN: BUS-LPJ-600SP
CAD
$429.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low-Peak Fuse, 600 A, Dual, Class J, Time Delay, 300 kAIC at 600 V
Features
- Engineered with standard Class J physical dimensions, this 600-Amp fuse delivers heavy-duty electrical protection in a fraction of the space required by traditional Class H or Class R systems. This compact footprint allows industrial panel builders and facility engineers to utilize smaller, more cost-effective switches and enclosures while meeting high-density power requirements.
- Featuring a sophisticated dual-element configuration, the LPJ-600SP provides a minimum 10-second time-delay at 500% of its rated current. This thermal delay easily tolerates temporary, non-damaging inrush currents from large 3-phase motors, transformers, and inductive loads, completely eliminating expensive operational downtime caused by premature fuse clearing.
- Boasting an elite 300,000-Amp interrupting rating at 600V AC, this Low-Peak™ fuse is built to safely isolate catastrophic electrical faults. By providing maximum interrupting capacity, it safeguards personnel, prevents explosive arc-flash damage to upstream infrastructure, and ensures full compliance with high short-circuit current rating (SCCR) code mandates.
Documentation & Downloads
Specifications
Additional
- Amperage
- 600 A
- Interrupting Rating
- 300 kAIC at 600 Vac
- Class
- Class J
- Number of Elements
- Dual
- Product Length
- 8 in
- Product Height
- 2.5 in
- Fuse Indicator
- Non-indicating
Voltage600 Vac, 300 Vdc
Fuse TypeDual Element, Time-Delay
Response Time10 sec at 500%
Connection TypeBolted blade end x bolted blade end
Product Width2.5 in
Product Weight2.65 lb
ComplianceCE Marked
