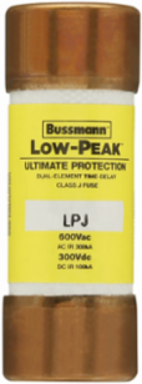

Bussmann LPJ-7SP Low-Peak Fuse, 7 A, Class J, Dual, 600 V, Time Delay, 10 sec at 500%
Bussmann LPJ-7SP Low-Peak Fuse, 7 A, Class J, Dual, 600 V, Time Delay, 10 sec at 500%
- MPN: LPJ-7SP
- UPC: 051712523462
- PPN: BUS-LPJ-7SP
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$25.32/ EA
Description
Low-Peak Fuse, 7 A, Class J, Dual, 600 V, Time Delay, 10 sec at 500%
Features
- Engineered with Low-Peak™ dual-element technology, this fuse provides a minimum 10-second time-delay at 500% of its 7-amp rating. This allows your motors and transformers to start without nuisance blowing during initial power surges, significantly reducing unnecessary downtime and maintenance costs in demanding industrial environments.
- As a specialized Class J current-limiting fuse, the LPJ-7SP reacts with incredible speed to clear faults, preventing downstream components from experiencing the full peak of a short circuit. This high-speed response effectively lowers the available Arc Flash energy, enhancing personnel safety and protecting sensitive PLC and motor controller components from catastrophic thermal damage.
- Boasting an industry-leading 300,000 Amp interrupting rating at 600V AC, this fuse is designed to safely quench massive electrical faults that would shatter standard protection devices. This extreme rating ensures your control panels and machinery remain fully compliant with NEC® Section 110.10 for high-capacity industrial power distribution systems.
- Designed with the standardized Class J physical envelope, this fuse offers a significantly smaller footprint than equivalent Class R or Class L fuses. This compact design allows engineers to specify smaller, more cost-effective fuse blocks and disconnects, maximizing valuable real-estate inside high-density "Finger-Safe" industrial enclosures and modular motor starters.
Specifications
- Voltage
- 600 Vac, 300 Vdc
- Interrupting Rating
- 300 kA AC, 100 kA DC
- Fuse Type
- Dual element, time-delay
- Length
- 2.25 in (1-30A)
- Weight
- 0.19 lb
- Compliance
- CE, cULus Listed, UL 248-8, CSA C22.2 No. 248.8, RoHS
Amperage7 A
Fuse ClassClass J
Time Delay10 sec at 500%
Diameter0.81 in (1-30A)
Connection TypeFerrule end x ferrule end
Fuse IndicatorNon-indicating
Downloads
