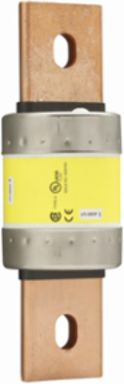

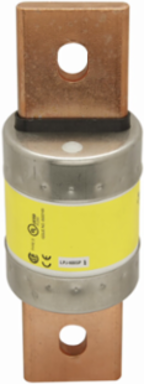

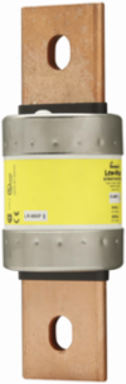

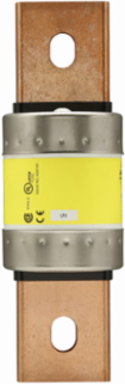

Bussmann LPJ-500SP Low-Peak Fuse, 500 A, Dual Class J, 600 V, 300 Vdc, Time Delay, 2.5 Inch x 8 Inch
- MPN: LPJ-500SP
- UPC: 051712522861
- PPN: BUS-LPJ-500SP
CAD
$427.75
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low-Peak Fuse, 500 A, Dual Class J, 600 V, 300 Vdc, Time Delay, 2.5 Inch x 8 Inch
Features
- Built with advanced Low-PeakTM current-limiting technology, the LPJ-500SP rapidly interrupts massive electrical faults before they can damage your system. By drastically reducing the thermal and magnetic energy of fault currents, it provides Type 2 "No Damage" coordinated protection for NEMA and IEC motor controllers, preventing expensive hardware destruction and extended operational downtime.
- Offering an industry-leading interrupting capacity of 300,000 amps at 600VAC and 100,000 amps at 300VDC, this Class J cartridge fuse handles the most severe electrical hazards with ease. This massive safety margin makes it the only UL Listed and CSA Certified fuse of its kind, ensuring effortless compliance with strict national electrical codes and giving industrial engineers complete peace of mind in high-energy applications.
- Engineered with separate overload and short-circuit elements, this fuse delivers a minimum of 10 seconds of ride-through performance at 500% of its rated 500-amp capacity. This deliberate lag allows high-inrush currents from heavy machinery and industrial motors to surge naturally without needlessly blowing the fuse, saving facility operators from annoying production interruptions.
- Within the Bussmann Low-Peak family, this fuse maintains a precise and consistent 2:1 ampacity ratio that simplifies system-wide coordination. If an overload occurs, only the immediate upstream fuse opens, preventing localized electrical faults from triggering cascading blackouts across your entire plant floor or facility infrastructure.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 300 Vdc
- Fuse type
- Time delay
- Response time
- 10 sec at 500%
- Dimensions
- 8 in x 2.5 in x 2.5 in
- Number of elements
- Dual
- Product Weight
- 2.65 lb
Amperage500 A
ClassClass J
Interrupt rating100 kAIC Vdc
ConnectionBolted blade end x bolted blade end
Fuse indicatorNon-indicating
CompliancesCE Marked
