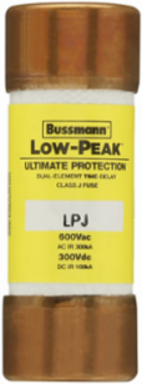

Bussmann LPJ-5SP Low-Peak Fuse, Dual Class J, 5 A, Time Delay, 600 Vac, 300 Vdc
- MPN: LPJ-5SP
- UPC: 051712522823
- PPN: BUS-LPJ-5SP
CAD
$23.90
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low-Peak Fuse, Dual Class J, 5 A, Time Delay, 600 Vac, 300 Vdc
Features
- Engineered with a robust 10-second time-delay at 500% overload, the LPJ-5SP safely rides through temporary current spikes and inductive surges. This dual-element engineering prevents costly nuisance branch circuit shutdowns while maintaining ultra-fast response speeds if a hazardous short-circuit actually occurs.
- Delivering an unmatched 300,000-amp RMS symmetrical breaking capacity at 600V AC, this Low-Peak™ fuse easily manages catastrophic overcurrent conditions. It provides worry-free deployment in high-fault environments, safeguarding complex downstream automation components from destructive magnetic and thermal forces.
- Measuring just 0.81 inches in diameter by 2.25 inches in length, this compact cartridge fuse provides full branch circuit safety in a space-saving physical package. The unique Class J rejection design ensures a lower-rated or incorrect voltage class fuse cannot be accidentally installed, maintaining full system compliance.
- Acting significantly faster than traditional mechanical circuit breakers during a short-circuit event, the LPJ-5SP curtails maximum fault currents before they reach peak values. This exceptional current limitation yields "no damage" Type 2 coordinated protection for vulnerable NEMA and IEC motor controllers, dramatically cutting maintenance repair times.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 300 Vdc
- Amperage Rating
- 5 A
- Number of Elements
- Dual
- Fuse Type
- Time delay, dual element
- Dimensions
- 2.25 in x 0.81 in x 0.81 in
- Compliances
- CE Marked, cULus Listed, UL 248-8, CSA C22.2 No. 248.8, RoHS compliant
Interrupting Rating100 kAIC Vdc, 300 kA Vac RMS Sym
Response Time10 sec at 500%
ClassClass J
ConnectionFerrule end x ferrule end
Fuse IndicatorNon-indicating (optional 'I' suffix for indicating, requires 75 Vac min)
Product Weight0.19 lb
