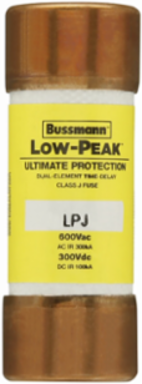

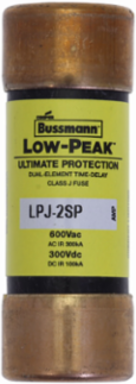

Bussmann LPJ-2SP Low-Peak Fuse 2 A Dual Class J Time Delay 100 kAIC 600 V 2.25 Inch x 0.81 Inch
- MPN: LPJ-2SP
- UPC: 051712522809
- PPN: BUS-LPJ-2SP
CAD
$24.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Low-Peak Fuse 2 A Dual Class J Time Delay 100 kAIC 600 V 2.25 Inch x 0.81 Inch
Features
- Built with a robust dual-element design, the LPJ-2SP provides a minimum of 10 seconds of time-delay at 500% of its 2-amp rated current. This allows the fuse to easily ride through high-inrush currents and transient overloads typical of small industrial motors and control transformers, completely eliminating costly nuisance trips while still offering precise backup protection against sustained overloads and single-phasing.
- perating as a true Class J current-limiting device, this fuse responds with lightning speed to catastrophic short-circuit events, drastically restricting peak let-through current. By forcing the fault current down before it can reach its full destructive potential, it shields downstream variable frequency drives (VFDs), NEMA®/IEC® motor controllers, and solid-state relays from thermal and magnetic degradation, ensuring a Type 2 "No Damage" coordination layout.
- Featuring an industry-leading interrupting rating of 300,000 Amps RMS Symmetrical at 600 Vac (and 100 kAIC at 300 Vdc), the LPJ-2SP delivers unmatched safety overhead. This massive clearing capacity allows it to be installed confidently in virtually any industrial application or electrical panelboard main, ensuring compliant facility integration and easily satisfying strict OSHA and National Electrical Code (NEC®) requirements for high available short-circuit currents (SCCR).
- Measuring just 0.81 inches in diameter by 2.25 inches in length, this ferrule-ended cartridge fuse delivers heavy-duty power protection in a significantly smaller footprint than standard Class R or Class H fuses. This compact spatial envelope allows industrial engineers and machine builders to downsize their enclosure profiles, saving premium panel real estate and reducing hardware costs without compromising circuit isolation.
Documentation & Downloads
Specifications
Additional
- Amperage
- 2 A
- Interrupting Rating
- 100 kAIC
- Fuse Type
- Dual element, time delay
- Dimensions
- 2.25 in x 0.81 in x 0.81 in
- Connection
- Ferrule end x ferrule end
- Compliances
- CE Marked, cULus Listed, UL 248-8, CSA C22.2 No. 248.8, RoHS Compliant
Voltage600 Vac, 300 Vdc
Fuse ClassClass J
Response TimeMinimum 10 sec at 500% rated current
Product Weight.19 lb
Fuse IndicatorNon-indicating
