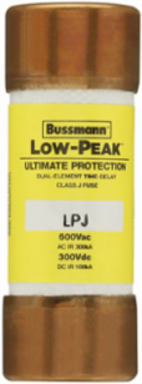

Bussmann LPJ-4SP Low-Peak Fuse 4 A Dual Class J Ferrule x Ferrule 600 Vac 300 Vdc

Low-Peak Fuse 4 A Dual Class J Ferrule x Ferrule 600 Vac 300 Vdc
Low-Peak Fuse 4 A Dual Class J Ferrule x Ferrule 600 Vac 300 Vdc
  • MPN: LPJ-4SP
  • UPC: 051712522816
  • PPN: BUS-LPJ-4SP

Spec sheet

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$26.48/ EA

Description

Low-Peak Fuse 4 A Dual Class J Ferrule x Ferrule 600 Vac 300 Vdc

Features

  • Standard Class J dimensions are significantly smaller than traditional Class H or K fuses, freeing up valuable real estate inside high-density industrial electrical enclosures. By utilizing standardized ferrule dimensions, this 4-amp fuse guarantees a secure, exact fit into compatible Bussmann fuse blocks, simplifying both routine facility maintenance and new OEM panel design.
  • Engineered to safely hold 500% of its rated current for a minimum of 10 seconds, this Eaton Bussmann Low-Peak fuse effortlessly absorbs temporary surges from motor startups and transformer energizations. This critical feature eliminates the costly downtime associated with nuisance tripping, while still delivering highly sensitive, immediate protection against sustained overloads and equipment faults.
  • Boasting an industry-leading 300,000 Amp RMS symmetrical interrupting rating at 600V AC, this highly efficient current-limiting fuse restricts dangerous fault currents before they can inflict severe thermal or magnetic damage. Rapidly clearing high-fault electrical events actively safeguards your expensive motor controllers and switchgear, significantly reducing arc flash hazards and protecting your personnel.
  • Fully UL Listed to standard 248-8 and CSA Certified to standard C22.2, this industrial-grade overcurrent protection device ensures your commercial installations easily pass rigorous North American safety inspections. Relying on factory-tested, code-compliant hardware guarantees highly reliable performance across harsh manufacturing environments and ensures your facility's operational liability insurance remains fully valid.

Specifications

Amperage
4 A
Interrupting Rating
100 kAIC Vdc
Fuse Type
Dual element, time-delay
Length
2.25 in
Connection
Ferrule end x ferrule end
Fuse Indicator
Non-indicating
Compliances
CE Marked, cULus Listed, UL 248-8, CSA Certified, RoHS Compliant
Voltage600 Vac, 300 Vdc
Fuse ClassClass J
Response Time10 sec at 500%
Diameter0.81 in
Number of ElementsDual
Weight.19 lb
