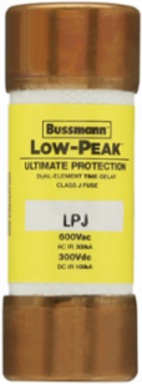

Bussmann LPJ-1SP Eaton Bussmann series LPJ fuse, Low-peak fuse, 1 A, Dual, Class J, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc

Eaton Bussmann series LPJ fuse, Low-peak fuse, 1 A, Dual, Class J, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc - https://media.province-electric.com/csv_eaton/2022q1/images/medium/1ecb33b981fce155a84b96d1379046d11f02ad03-medium.png

MPN: LPJ-1SP
UPC: 051712523233
PPN: BUS-LPJ-1SP

Spec sheet

Available to Order

Company Stock:

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$24.03/ EA

Qty:

Loading add to cart quantity...

Description

Eaton Bussmann series LPJ fuse, Low-peak fuse, 1 A, Dual, Class J, Non-indicating, Ferrule end x ferrule end, Time delay,Current-limiting, 10 sec at 500%, 300 kAIC at 600 V,100 kAIC Vdc, Standard, 600 V, 300 Vdc

Specifications

General

UPC: 051712523233

Product Height: .81 in

Product Weight: .19 lb

Compliances: CE Marked

Product Length/Depth2.25 in

Product Width.81 in

WarrantyNot Applicable

General Information

Class: Class J

Fuse indicator: Non-indicating

ConnectionFerrule end x ferrule end

Electrical Rating

Amperage Rating: 1 A

Response time: 10 sec at 500%

Interrupt rating300 kAIC at 600 Vac

Voltage rating600 Vac, 300 Vdc

Physical Details

Fuse type: Time delay

Packaging type: Standard

Number of elementsDual
