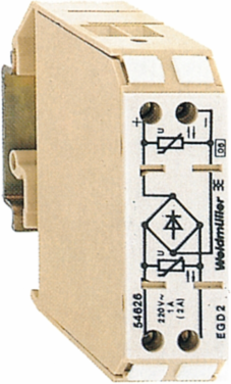

Weidmuller 0546260000 EGD2 EG2 5..240VAC/1A
- MPN: 0546260000
- PPN: WDM-0546260000
CAD
$72.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

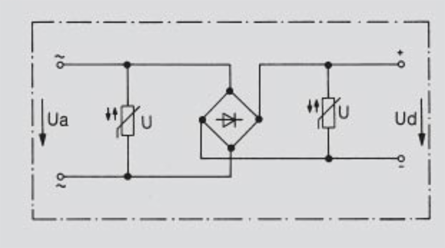

Surge protection, Rectifier circuit
Documentation & Downloads
Specifications
General Data
| Version | Surge protection for measurement and control |
|---|
Probability Of Failure
| MTTF | 11,414 Years |
|---|
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 20 mm |
|---|---|
| Height | 58 mm |
| Net weight | 36.87 g |
| Width (inches) | 0.787 inch |
|---|---|
| Height (inches) | 2.283 inch |
Connection Data
| Cross-section | 2.5 mm² |
|---|---|
| Tightening torque, min. | 0.4 Nm |
| Clamping range, rated connection | 4 mm² |
| Clamping range, max. | 4 mm² |
| Wire connection cross-section, finely stranded, min. | 0.5 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), min. | 0.5 mm² |
| Type of connection | Screw connection |
|---|---|
| Tightening torque, max. | 0.6 Nm |
| Clamping range, min. | 0.5 mm² |
| Wire connection cross section AWG, max. | AWG 12 |
| Wire connection cross section, finely stranded, max. | 4 mm² |
| Conductor cross-section, flexible, AEH (DIN 46228-1), max. | 2.5 mm² |
Input
| Rated current AC | 2,5 A |
|---|
Classifications
| ETIM 6.0 | EC002540 |
|---|---|
| eClass 9.0 | 27-04-07-01 |
| eClass 10.0 | 27-04-07-01 |
| ETIM 7.0 | EC002540 |
|---|---|
| eClass 9.1 | 27-04-03-90 |
| UNSPSC | 30-21-19-21 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Insulation Coordination
| Surge voltage category | II |
|---|
| Pollution severity | 2 |
|---|
Temperatures
| Operating temperature, max. | 40 °C |
|---|---|
| Storage temperature, max. | 100 °C |
| Operating temperature | -30 °C...40 °C |
| Operating temperature, min. | -30 °C |
|---|---|
| Storage temperature, min. | -45 °C |
| Storage temperature | -45 °C...100 °C |
