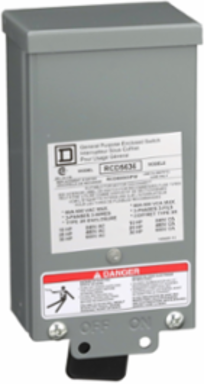

Square D RCD5636 Heavy Duty Safety Switch 60A 600V 3 Poles NEMA 3R
- MPN: RCD5636
- UPC: 785901595359
- PPN: SCH-RCD5636
CAD
$238.57
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for robust performance, the heavy-duty safety switch from Schneider Electric is designed to handle demanding environments while ensuring safety and reliability. With a capacity of 60A and operating up to 600V across three poles, this switch provides strong protection against electrical hazards. Its NEMA 3R rating allows for usage in outdoor applications or in areas subject to moisture and limited ingress, making it a versatile choice for diverse power distribution needs. This product stands as a reliable solution for automation and control, facilitating seamless safety and connectivity in industrial settings.
Features
- This heavy-duty, 3-pole (3P), single-throw safety switch functions as a non-fusible disconnect designed for reliable electrical isolation up to 60 A at 600 V AC or DC. It is engineered to safely handle demanding industrial machinery control loops, large air compressors, and heavy commercial HVAC equipment, giving you a centralized way to manually shut down 3-phase systems.
- The entire mechanical assembly is housed within a rugged, heavy-duty NEMA Type 3R weatherproof enclosure. This rainproof and ice-resistant steel shell provides exceptional physical defense against elements like moisture, snow, and limited dirt ingress, making it the ideal choice for outdoor processing yards, rooftop HVAC plants, and unconditioned industrial facilities.
- This safety switch incorporates a dual-cover mechanical interlock system that completely prevents the enclosure door from being opened while the switch handle is in the "ON" position. This fool-proof feature shields technicians from accidental exposure to live lines, while also blocking the switch from being thrown "ON" while the cover is open during panel servicing.
- Designed with a high-performance quick-make, quick-break operating mechanism, the internal blades snap open or closed completely independent of the operator's physical handle speed. This rapid mechanical transition controls localized electrical arcing, reduces contact fatigue, and drastically extends the overall electrical and physical lifespan of the switch contacts.
- The internal terminal block features front-accessible lug connections that natively accommodate a wide wiring spectrum ranging from 14 AWG up to 3 AWG copper or aluminum conductors.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| Depth | 83 mm |
|---|
Complementary Attributes
| Line Rated Current | 60 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Application | air compressor, heating ventilation and air conditioning |
| Carbon Footprint Of The Distribution Phase [A4] | 0.5474464064645446, 0.5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.1924783635200225, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 13 kg CO2 eq., 12.992332388513393 |
| Local Publishable Date | 2026-05-08 |
| Stocking Flag | N |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 4 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1904 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Awg Gauge | 14 AWG...3 AWG copper or aluminium |
| Electrical Connection | lugs |
| Motor Power Hp | 30 hp at 600 V AC 50/60 Hz for 3 phase motors25 hp at 480 V AC 50/60 Hz for 3 phase motors10 hp at 240 V AC 50/60 Hz for 3 phase motors |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 28 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1. |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; US |
| Recyclability Potential In % | 89 |
| Width Nominal | 114 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536509065 |
| Persona Type Names | Contractor, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, UL |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4 kg CO2 eq., 4.232392442269192 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 10.037274269684406 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Disconnector Device Type | non-fusible disconnect |
| Energy Efficiency Optimized | False |
| Number Of Poles | 3 |
| Product Or Component Type | Single Throw Safety Switch |
| Series Name | heavy duty |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP2305006EN |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; US |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; US |
| Height Nominal | 222 mm |
| [Ue] Rated Operational Voltage | 600 V AC |
| Package Weight(Lbs) | 1.837 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 28.00192387045156 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | Yes |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-06-06 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Reach Free Shvc | Yes |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2305006EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2305006EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | Single Throw Safety Switch |
|---|
