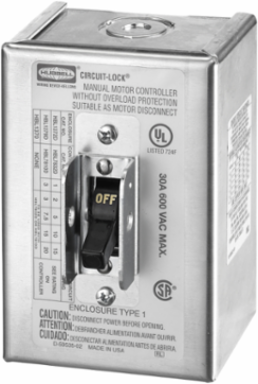

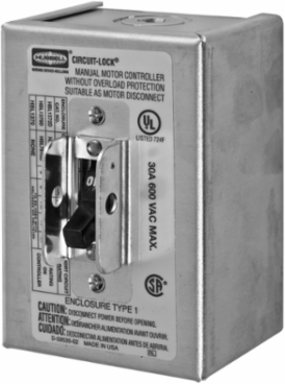

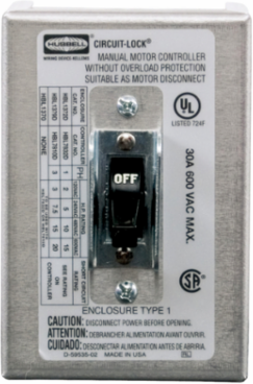

Hubbell HBL1379 Circuit-Lock NEMA 1 Toggle Switch Disconnect 3-Pole 30A 600V AC
- MPN: HBL1379
- UPC: 783585680903
- PPN: HBL-HBL1379
- UNSPSC: 39121521
CAD
$169.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Circuit-Lock® NEMA 1 Enclosure Toggle Switch Disconnect, 3-Pole, 30A 600V AC, Aluminum
Features
- All aluminum cover and base
- Base is pre-drilled for rear surface mounting
- Wiring conduit knockouts
- 1 2" and 3 4" NPT
- Top, bottom or back wire entry points
- Surface mount control
- Switch can be locked in the OFF position as a method of compliance with OSHA lockout/tagout
- Standard Product
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Phase | Three Phase |
| Dielectric Strength | 2,200 V AC minimum for 1 minute |
| Mechanical Life | 10,000 cycles |
| Length | 4.52 in |
| Height | 3.15 in |
| Material | Aluminum |
| Terminal Accommodations | #10 AWG max. |
| Operating Temperature | -40 C to 75 C |
| Industry Standards | CSA-C22.2 No.14; UL 508 |
| Country of Origin | CN |
| Voltage | 600 V AC |
|---|---|
| HP Rating | 3 HP 120V AC 1 Phase, 7.5 HP 240V AC 3 Phase, 15 HP 480V AC 3 Phase, 20 HP 600V AC 3 Phase |
| Electrical Life | 6,000 cycles |
| Wattage | 18,000 W |
| Width | 3.2 in |
| Poles | 3-Pole |
| Connectivity | Pressure Terminal Screws |
| Wire Type | Solid and stranded copper |
| Flammability | UL94 HB/V-0 |
| EU RoHS Indicator | Yes |
