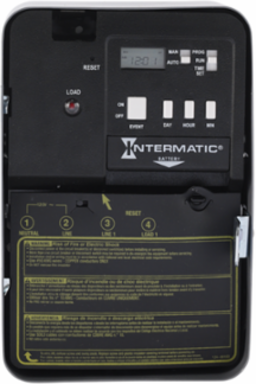

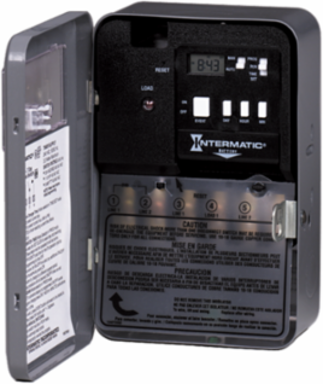

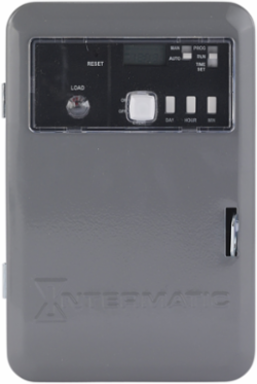

Intermatic EH10 Electronic Water Heater Timer, 120/240 VAC, 7-Day Scheduling
Intermatic EH10 Electronic Water Heater Timer, 120/240 VAC, 7-Day Scheduling
- MPN: EH10
- UPC: 078275042896
- PPN: INT-EH10
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$180.02/ EA
Description
The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.
Features
- 42 ON/OFF events per week.
- 7-day scheduling.
- To-the-minute programming and time-keeping accuracy.
- External override switch.
- LED load indicator.
- Replaceable battery backup.
- NA
Specifications
Specifications
- Input Voltage Rating Range(s)
- 120 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- The EH Series Electronic Time Switches provide control for electric water heaters with to-the-minute accuracy in programming and time-keeping. The use of a water heater timer allows the customer to shift electricity use to "off-peak" time periods to reduce utility costs. These time switches can be programmed for repeat daily scheduling, 5-day work week scheduling, weekend scheduling or individual day scheduling. Models are available for both 120 and 240 VAC applications.
- Length
- NA NA
- Width
- 5.08 in
- Country of Origin
- China
Warranty Period1-Year limited
ApplicationsAgriculture Feeders;Greenhouse Misting Control;Water Heater Control
Height7.5 in
Weight2.401 lbs
Depth3 in
