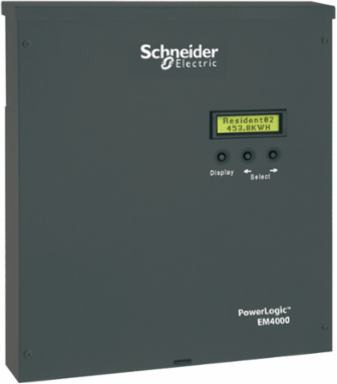

Square D METSEEM408016 EM4000 Multi-Circuit Energy Meter, 24 Inputs, 120V AC 60 Hz
Square D METSEEM408016 EM4000 Multi-Circuit Energy Meter, 24 Inputs, 120V AC 60 Hz
- MPN: METSEEM408016
- PPN: SCH-METSEEM408016
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4096.65/ EA
Description
This multi-circuit power meter is part of the PowerLogic EM4000 Series. This compact multi-circuit energy meter enables reliable metering of building electrical loads with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for departmental metering applications and M&V within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 277 (phase neutral) or 480 volts (phase phase) networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 305 mm in height and 55 mm in depth ; for 4 kg.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Pollution Degree
- 2
- Ambient Air Temperature For Storage
- -40-70 °C
- Standards
- IEC 6100-4-5 || ICES-003 || FCC part 15 class B || CSA C22.2 No 61010-1 || EN 55022 || ANSI/TIA-968-A : 2002 || CSA C22.2 No 61010-1-4
- Product Certifications
- UL
- Enclosure Type
- NEMA type 1
- Net Weight
- 4 kg
- Operating Altitude
- <= 3000 m
Height33.5 cm
Mounting Modewall mount
Relative Humidity90-90 % 40-40 °C
Device Mountingwall mounted
Width30.5 cm
Depth5.5 cm
Type Of Installationnenclosed outdoor || indoor installation
Specifications
- Network Frequency
- 60 Hz
- [Us] Rated Supply Voltage
- 120 V AC 60 Hz
- Type Of Measurement
- current per phase, rms || negative active energy || voltage per phase, rms || negative reactive energy || apparent energy || pulse count || active and reactive power || apparent power || positive active energy || positive reactive energy
- Product Or Component Type
- multi-circuit energy meter
- Device Application
- sub billing
- Range
- PowerLogic
Energy Managementsub billing and cost allocation || billing analysis
Power Quality Analysiscompliance monitoring
Power Monitoringbasic instrumentation
Product NamePowerLogic EM4000
Device Short NameEM4080
Complementary
- Communication Port Support
- RJ45 ETHERNET || RS485
- Measurement Voltage
- 80-480 V without PTs || 480-999000 V with external PTs
- Communication Port Protocol
- BACnet IP || FTP || HTTP || Modbus TCP/IP || SNTP
- Display Type
- backlit LCD
- Number Of Inputs
- 2 pulse
Measurement Accuracy+/- 0.5 % of the measuring range
Sampling Rate256 samples/cycle
Analogue Input Typesolid core CT 80 mA24 x single pole || solid core CT 80 mA12 x single phase || solid core CT 80 mA8 x three phase
Communication Of Datanegative active energy || positive active energy || voltage || positive reactive energy || apparent energy || negative reactive energy
Messages Display Capacity2 lines of 16 characters
