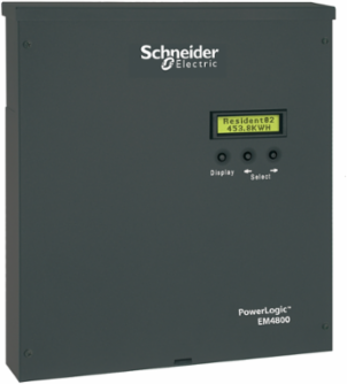

Square D METSEEM488016 EM4800 multi-circuit energy meter - 24 x 80 mA inputs, 120 V - 60 Hz
- MPN: METSEEM488016
- UPC: 785901754497
- PPN: SCH-METSEEM488016
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This multi-circuit power meter is part of the PowerLogic EM4800 Series. This compact multi-circuit energy meter enables reliable metering of individual tenants with a low installation cost-per-point. It combine revenue-accurate electricity sub-metering with advanced communications technology. It is ideal for multi-tenant or departmental metering applications within office, condominiums, malls and other multi-user environments. This version monitor up to 24 tenants with a single device, combined with 80 mA solid core current transformers. Designed for 120 volts networks, working at 60 Hz. Measurement accuracy is plus or minus 0.5 %, compliant with ANSI C12.1 and C12.20 Class 0.5 ; IEC 62053-22 Class 0.5S. The printed board is installed in a Type 1 black enclosure, with an integrated backlit LCD display, 2 lines, on the door. Mechanical dimensions are 335 mm in width, 440 mm in height and 55 mm in depth ; for 5.4 kg.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Canada |
|---|
| Depth | 5.5 cm |
|---|
Communications & Management Attributes
| Communication Of Data | positive reactive energy, positive active energy, voltage, apparent energy, negative reactive energy, negative active energy |
|---|---|
| Communication Port Support | RJ45 ETHERNETRJ11 modemSUB-D 9 RS232 |
| Communication Port Protocol | BACnet IP, FTP, HTTP, Modbus TCP/IP, SNTP |
|---|
Important Information Attributes
| Energy Management | sub billing and cost allocation, billing analysis |
|---|---|
| Type Of Measurement | current per phase, rms, voltage per phase, rms, negative reactive energy, apparent energy, pulse count, positive active energy, positive reactive energy, negative active energy |
| Local Publishable Date | 2025-07-09 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | DPIBS |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1319 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Device Application | sub billing |
| Display Type | Backlit LCD |
| Measurement Accuracy | +/- 0.5 % of the measuring range+/- 0.5 % of the measuring range |
| Messages Display Capacity | 2 lines of 16 characters |
| Network Frequency | 60 Hz |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | multi-circuit energy meter |
| Range Of Product | PowerLogic |
| Sampling Rate | 256 samples/cycle |
| Height Nominal | 30.5 cm |
| Certificate Agency | UL |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9028300000 |
| Market Segment | buildings medium building cost management: cost allocation: panelboard, buildings large building cost management: cost allocation: panelboard, buildings multi-site cost management: cost allocation: panelboardbuildings small building cost management: billing: panelboard, buildings medium building cost management: billing: panelboard, buildings large building cost management: billing: panelboard, buildings multi-site cost management: billing: panelboard, buildings small building cost management: cost allocation: panelboard |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Device Type | Relay, Control & Measurement - measuring, monitoring device |
| Traceability | Yes |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Compatibility Code | EM4800 |
| Device Short Name | EM4800 |
| Energy Efficiency Optimized | False |
| Measurement Voltage | 80-480 V480-999000 V with external VT |
| Mounting Mode | wall mount |
| Power Monitoring | basic instrumentation |
| Product Name | PowerLogic EM4800 |
| Range | PowerLogic |
| Returnability | No |
| Sustainable Packaging | No |
| Width Nominal | 33.5 cm |
| [Us] Rated Supply Voltage | 120 V AC 60 Hz |
| Package Weight(Lbs) | 1 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Operating Altitude | <= 9842.52 ft (3000 m), <= 9842.52 ft (3000 m) |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Ambient Air Temperature For Operation | -40-70 °C-40-70 °C |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Relative Humidity | 90-90 % 40-40 °C |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | multi-circuit energy meter |
|---|
| Range Of Product | PowerLogic |
|---|
ETIM
| ETIM 8 | EC002301 |
|---|
| ETIM 9 | EC002301 |
|---|
Output Attributes
| Number Of Outputs | 0 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Analogue Input Type | solid core CT 80 mA24 x single polesolid core CT 80 mA12 x single phasesolid core CT 80 mA8 x three phase |
|---|
| Number Of Inputs | 2 pulse |
|---|
