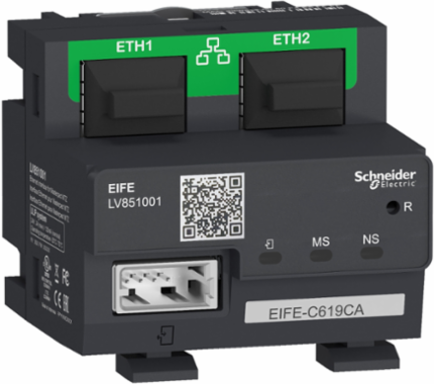

Schneider Electric LV851001SP Embedded Ethernet interface EIFE, MasterPact MTZ1/MTZ2/MTZ3 drawout, spare part
- MPN: LV851001SP
- PPN: SCH-LV851001SP
CAD
$2280.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ. The EIFE is mounted on MasterPact MTZ chassis DIN rail, and is connected to the ULP port by an ULP cable (not supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth52.5 mm
Communications & Management Attributes
- Communication Network Type
- ULP, CANopen USB, Ethernet, Ethernet TCP/IP 10/100 Mbps RJ45
Communication GatewayEthernet TCP/IP to Modbus
Complementary Attributes
- Maximum Supply Current
- 3 A
Important Information Attributes
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- EAC, CE, FCC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.158162969
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 7 kg CO2 eq., 7.314896244
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Use Carbon Footprint
- 86.17
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2305013EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1927
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Persona Type Names
- Panel Builder
- Tier
- 3
- Function Option
- Standard
- Device Application
- communication
- Localisation On Device
- chassis
- Mounting Support
- DIN rail
- Power Consumption In W
- 72 W
- Product Or Component Type
- Ethernet interface module
- Range
- MasterPact
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 94 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Function of this Gateway Module is to Control, monitor and configure breaker functions, for 20 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime, In Kwh
- 210.24
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 51 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 207.0 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 86.17
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 927.99
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 128.12
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2616.9
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2195.4
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.02083786, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.145946024, 0.1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]86 kg CO2 eq., 86.17
Local Publishable Date2025-07-10
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticYes
Persona Type IdsPB
Tier Id3
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Mounting Modedrawout
Offer Typespare part
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipment1 instruction sheet
ReturnabilityYes
Sustainable PackagingYes
Web Serverembedded
Pep CodeENVPEP2305013EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential, In %14
Width Nominal51 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]86.055
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2195.4
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.7145
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]12.398
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]421.57
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]421.57
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 93.8098431
- Environmental Disclosure
- ENVPEP2305013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-70 °C, -20-70 °C
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Circularity ProfileENVEOLI2305013EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP30
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2305013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet interface module
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
