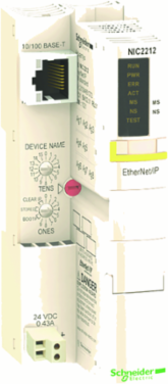

Schneider Electric STBNIC2212 Modicon STB Network Interface Module, Ethernet/IP, 10-100 Mbit/s, IP20
Schneider Electric STBNIC2212 Modicon STB Network Interface Module, Ethernet/IP, 10-100 Mbit/s, IP20
- MPN: STBNIC2212
- PPN: SCH-STBNIC2212
- UNSPSC: 32151601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$759.98/ EA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are embedded web, BootP/DHCP protocol and SNMP agent. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height) and weighs 0.145kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, CSA, ATEX category 3G, ODVA, C-Tick, UL, it meets IEC 61131-2 2003 and FM Class 1 division 2, groups A, B, C and D T4A standards. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Features
- Supports Ethernet/IP at 10–100 Mbps speed
- Easy to connect with Modicon STB systems
- Enables fast and reliable network interface
- Ideal for distributed I/O communication
Specifications
Communications & Management Attributes
- Communication Service
- embedded web (configuration,diagnostics and access to variable), BootP/DHCP protocol, SNMP agent
Conformance Attributes
- Product Certifications
- UL, ODVA, C-tick, CSA
Complementary Attributes
- Integrated Connection Type
- Ethernet/IP IEEE 802.3 female RJ45 double shielded twisted pair via Ethernet network), Ethernet/IP IEEE 802.3 HE-13 RS232 port), Ethernet/IP IEEE 802.3 8-way female RS232 port)
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED ACT, 1 LED island state (RUN), 1 LED module error (ERR), 1 LED MS, 1 LED NS, 1 LED power supply (PWR), 1 LED test mode (TEST)
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- IDIBS
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Market Segmentation
- Industrial
- Exchange Mode
- half or full duplex
- IO Link Master Present
- false
- Network Type
- DC
- Package Weight Lbs
- 165.000 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Rack Assembly Possible
- true
- Radio Standard GPRS
- false
- Radio Standard UMTS
- false
- Returnability
- No
- Supporting Protocol For As Interface Safety At Work
- false
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Sustainable Packaging
- No
- Wall Mounting Direct Mounting Possible
- false
- Appendant Operation Agent Ex Ib2
- false
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Certified For Ul Hazardous Location Group A Acetylene2
- false
- Certified For Ul Hazardous Location Group C Ethylene2
- false
- Certified For Ul Hazardous Location Group E Metal Dusts2
- false
- Certified For Ul Hazardous Location Group G Non Conductive Dust2
- false
- Radio Standard Wi Fi 802 11
- false
- Medium Desc
- network interface module, Modicon STB, standard, Ethernet/IP, 10-100Mbit/s
- Product Kit Identifier
- N
- Potential Separation Present
- true
- Appendant Operation Agent Ex Ia3
- false
- Certified For Ul Hazardous Location Group A Acetylene3
- false
- Certified For Ul Hazardous Location Group E Metal Dusts3
- false
- Certified For Ul Hazardous Location Group G Non Conductive Dust3
- false
- Number Of Addressable I O Module
- 0-32 per island
- Global Commercial Status
- Commercialised
- Radio Standard Lte
- false
- Certified For Ul Hazardous Location Group D Propane 4
- false
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Vibration Resistance+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz), 3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Publishable Date2026-02-24
Device TypeAutomation - Distributed inputs/ouputs
TraceabilityYes
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Bearing Track Assembly Possibletrue
Front Installation Possiblefalse
MarkingCE
Number Of Devices Per Segment0-256
Power Supply TypeSELV
Product Or Component Typestandard Network Interface Module
Radio Standard Bluetoothfalse
Radio Standard GSMfalse
Range Of ProductModicon STB distributed I/O solution
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asifalse
Supporting Protocol For Data Highwayfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Ethernet Ipfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Supporting Protocol For TCP IPfalse
Transmission Rate10/100 Mbit/s
Appendant Operation Agent Ex Ia2false
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Certified For Ul Hazardous Location Group B Hydrogen2false
Certified For Ul Hazardous Location Group D Propane2false
Certified For Ul Hazardous Location Group F Carbonaceous Dust2false
DC Supply Voltage24-24 V
Supporting Protocol For Interbus Safetyfalse
Stocking FlagY
Performance Level According To En Iso 13849 1none
System Accessorytrue
Appendant Operation Agent Ex Ib3false
Certified For Ul Hazardous Location Group B Hydrogen3false
Certified For Ul Hazardous Location Group F Carbonaceous Dust3false
Pep CodeENVPEP0808003EN
Number Of Segments1 primary, maximum 6 extensions
Radio Standard Egprsfalse
Certified For Ul Hazardous Location Group C Ethylene 4false
Environment Attributes Main
- Take Back
- Nej, No
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Operating Altitude
- <= 6561.68 ft (2000 m), <= 6561.68 ft (2000 m)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- No
- Relative Humidity
- 95-95 % 60-60 °C without condensation
Ambient Air Temperature For Operation-25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
China ROHS RegulationX
Environmental DisclosureENVPEP0808003EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP0808003EN
General Attributes
- Product Or Component Type
- standard Network Interface Module
Range Of ProductModicon STB distributed I/O solution
Output Attributes
- Nominal Output Current
- 0.575 A 60-70 °C, 1.2 A
Output Voltage5.25 V DC +/- 0.21 %)logic bus
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 430 mA supply circuit
Specifications
- Depth
- 70 mm
