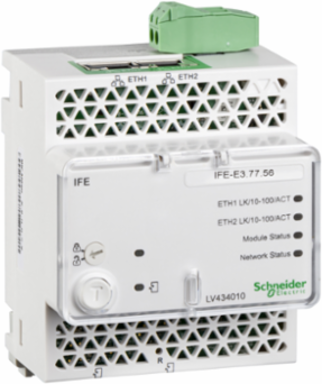

Schneider Electric LV434010 IFE interface, Enerlin'X
- MPN: LV434010
- PPN: SCH-LV434010
CAD
$3697.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The IFE Module helps in communication and access to circuit breaker information over an Ethernet network. This enables customers to continuously monitor and control electrical equipment assets in order to improve uptime and manage costs very efficiently. Using high-speed and reliable Ethernet connectivity to interface with Schneider Electric LV breakers, the IFE modules provide breaker control, event alarms and notifications, and easy viewing of status, diagnostics, and maintenance. Benefits. Plug-and-play connection for easy installation. Interfaces with Masterpact™ and PowerPact™ circuit breakers. Provides high speed access to circuit breaker information. Each circuit breaker can be assigned an IP address for high performance and time critical applications. 2 Ethernet ports allow daisy-chain network topology (RJ45 ports). Built-in event e-mail alarm notification. To optimize your asset and energy management data, connect the IFE Module to I/O Module and FDM128 Monitor.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, France, Indonesia, Mexico, United States |
|---|
| Depth | 71 mm |
|---|
Communications & Management Attributes
| Communication Network Type | Ethernet, Modbus TCP/IP, HTTP, FTP, SMTP, NTP, SNMP 10/100 Mbit/s 2-port RJ45, Universal Logic Plug 2-port RJ45 |
|---|
Complementary Attributes
| Maximum Supply Current | 3 A |
|---|
Important Information Attributes
| Persona Type Ids | LC, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Flame Retardance | V0 conforming to UL 94, V0 conforming to IEC 60947-1, V0 conforming to IEC 60695-2-11 |
| Certificate Agency | GOST, CE, cULus, FCC |
| Carbon Footprint Of The Distribution Phase [A4] | 0.029305013, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.083288309, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 103 kg CO2 eq., 103.4 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | Y |
| Device Type | Relay, Control & Measurement - gateway |
| Traceability | Yes |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Control Type | by software |
| Device Short Name | IFE |
| Mounting Mode | by clips |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | Enerlin'X |
| Shock Resistance | 1000 m/s² |
| Sustainable Packaging | No |
| Vibration Frequency | 5-8.4 Hz |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | This is an Ethernet gateway module with dual Ethernet ports with 10/100Mbps bit rate and able to handle 8 Modbus client connections to monitor, control and configure LV range of breaker systems during 10 years |
| Functional-unit Unit | Unit |
| Energy Consumption On Product Lifetime In Kwh | 252.288 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Height Nominal | 105 mm |
| [Us] Rated Supply Voltage | 24 V DC - 20...10 % |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 251.0 g |
| Warranty (In Months) | 18 |
| Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6] | 103.4 |
| Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6] | 1113.6 |
| Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6] | 153.75 |
| Terrestrial Eutrophication (Mole Of N Equiv) Operational Energy Use [B6] | 1.0072 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 505.88 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 505.88 |
| Persona Type Names | Contractor, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Range Of Product | PowerPact J, PowerPact L, NSX400...630, NS1600b...3200, NS630b...1600, NSX100...250, PowerPact H, MasterPact NT, PowerPact P, PowerPact R, MasterPact NW |
| Accessory / Separate Part Category | spare part Compact NS630b...1600, spare part Compact NS1600b...3200 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.3 kg CO2 eq., 0.306657308 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 12 kg CO2 eq., 12.04027228 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 1 |
| Serviceability | No |
| Use Carbon Footprint | 103.4 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2305024EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1920 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Compatibility Code | IFE |
| Current Consumption | 120 mA |
| Energy Efficiency Optimized | False |
| Mounting Support | 35 mm DIN rail |
| Product Or Component Type | communication module |
| Returnability | No |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 116 kg CO2 eq. |
| Web Server | embedded HTTP server |
| Pep Code | ENVPEP2305024EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; ID |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 1 |
| Width Nominal | 72 mm |
| Connections - Terminals | RJ45 connector |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6] | 103.27 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2634.4 |
| Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6] | 2.0574 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 14.878 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 3140.3 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2634.4 |
| Customs Code | 8517620090 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 115.8595229 |
| Environmental Disclosure | ENVPEP2305024EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP2305024EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -20-70 °C, -20-70 °C |
|---|---|
| Product Compatibility | Compact NS1600b...3200, Compact NSX400...630, Compact NS630b...1600, Compact NSX100...250 |
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2305024EN |
| Eu Rohs Directive | Compliant By Exemption |
| Ip Degree Of Protection | connectors IP2Xother parts IP3xfront panel IP4X |
| Packaging Without Single Use Plastic | No |
| Relative Humidity | 5-85 % |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Range Of Product | PowerPact J, PowerPact L, NSX400...630, NS1600b...3200, NS630b...1600, NSX100...250, PowerPact H, MasterPact NT, PowerPact P, PowerPact R, MasterPact NW |
|---|
| Product Or Component Type | communication module |
|---|
ETIM
| ETIM 8 | EC001604 |
|---|
| ETIM 9 | EC001604 |
|---|
