Schneider Electric LV851200SP Embedded Ethernet Interface Module for MasterPact MTZ2/MTZ3, IP30, 72W
- MPN: LV851200SP
- PPN: SCH-LV851200SP
CAD
$2358.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

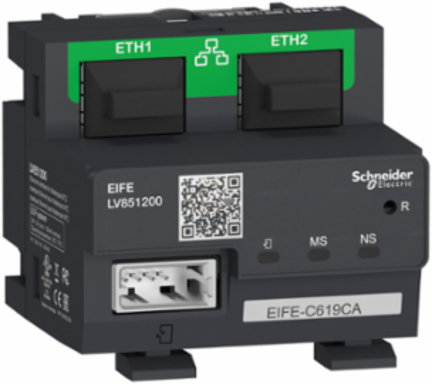

This EIFE is an embedded Ethernet interface module designed for MasterPact MTZ2/3 drawout circuit breakers. It provides a single Ethernet access and gets all data delivered by Masterpact MTZ2/3 control unit. It monitors the three positions of the circuit breaker when inserted in its chassis (IN, OUT, TEST). The data flow is 10/100 Mbps for a simple daisy chain connection. The connection to EIFE interface requires a ULP communication port installed on the chassis of MasterPact MTZ2/3. The EIFE is mounted on MasterPact MTZ2/3 chassis DIN rail, and is connected to the ULP port by an ULP cable (supplied). The EIFE power supply is provided by the ULP port through the ULP cable. There are two RJ45 sockets for the connection to Ethernet network. The EIFE is entirely part of the EcoStruxure Power architecture and Ethernet ready smart panels. The EIFE firmware can be updated using EcoStruxure Power Commission software.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil
Depth52.5 mm
Communications & Management Attributes
- Communication Gateway
- Ethernet TCP/IP to Modbus
Communication Network TypeULP, CANopen USBEthernet, Ethernet TCP/IP 10/100 Mbps RJ45
Complementary Attributes
- Maximum Supply Current
- 3 A
Important Information Attributes
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- CE, FCC, EAC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.23821
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 11 kg CO2 eq., 11.017
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Manufacturing Carbon Footprint
- 11.017
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Persona Type Ids
- PB
- Tier Id
- 3
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- communication
- Localisation On Device
- chassis
- Mounting Support
- DIN rail
- Power Consumption In W
- 72 W
- Product Or Component Type
- Ethernet interface module
- Range
- MasterPact
- Software Version
- v5.9.4
- Total Lifecycle Carbon Footprint
- 98 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Function of this Gateway Module is to Control, monitor and configure breaker functions, for 20 years.
- Functional-unit Unit
- Unit
- Energy Consumption On Product Lifetime In Kwh
- 210.24
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Height Nominal
- 51 mm
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 319.000 g
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 86.055
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 86.17
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Installation [A5]
- 2.2823
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]
- 4.6373
- Ecotoxicity (Fresh Water) (Ctue) Manufacturing [A1-a3]
- 137.2
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 927.99
- Ecotoxicity (Fresh Water) (Ctue) Benefits/Loads Beyond System Boundaries [D]
- -1.6117
- Hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -1.5723
- Impacts Related To Land Use/Soil Quality (-) End Of Life [C1-c4]
- 0.4161
- Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 128.12
- Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]
- 3.7947
- Non-hazardous Waste Disposed Of (Kg) Benefits/Loads Beyond System Boundaries [D]
- -1.6411
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]
- 2.104
- Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]
- 134.01
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2616.9
- Total Use Of Primary Energy During The Life Cycle (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.4915
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 421.57
- Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 2.104
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 127.06
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 2195.4
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -1.4649
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]
- 0.504
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 421.57
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.031384, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.21981, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]86 kg CO2 eq., 86.17
Local Publishable Date2026-06-26
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Use Carbon Footprint86.17
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2305013EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1927
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Persona Type NamesPanel Builder
Tier3
Function OptionStandard
Condition Of Usewith specific accessories
Energy Efficiency OptimizedFalse
Mounting Modedrawout
Offer Typespare part
Product AvailabilityStock - Normally stocked in distribution facility
Provided Equipment1 instruction sheet
ReturnabilityYes
Sustainable PackagingYes
Web Serverembedded
Pep CodeENVPEP2305013EN
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; ID
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %14
Width Nominal51 mm
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Manufacturing [A1-a3]11.004
Climate Change - Total ( Kg Co2 Eq.) Manufacturing [A1-a3]11.017
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]129.17
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2195.4
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Benefits/Loads Beyond System Boundaries [D]-1.6247
Ecotoxicity (Fresh Water) (Ctue) Installation [A5]1.5864
Ecotoxicity (Fresh Water) (Ctue) End Of Life [C1-c4]75.112
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]32.362
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.7145
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Manufacturing [A1-a3]3.899
Net Use Of Fresh Water (M3) End Of Life [C1-c4]1.0028
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]12.398
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle2.104
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1598
Total Use Of Primary Energy During The Life Cycle (Mj) Installation [A5]2.4496
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]4.8042
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]4.8416
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle1.9442
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]-0.1598
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Installation [A5]2.2823
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]4.6373
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle0.504
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]4.3376
Customs Code8517620090
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 97.676404
- Environmental Disclosure
- ENVPEP2305013EN
- Halogen Content Performance
- Halogen free plastic parts product
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-70 °C, -20-70 °C
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Circularity ProfileENVEOLI2305013EN
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP30
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2305013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- Ethernet interface module
Provided Equipment1 instruction sheet
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
