Schneider Electric VW3A9524 EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 2

EMC conformity kits, Altivar Machine ATV320, Altivar 12, for variable speed drive size 2
  • MPN: VW3A9524
  • PPN: SCH-VW3A9524

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$42.91/ EA

    Description

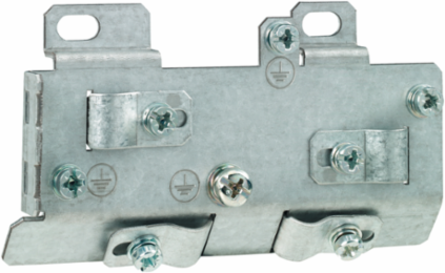

    This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 2 (105x46.5mm). It helps organizing cable layout. It weighs 0.19kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV12H075F1, ATV12HU**M2, ATV12*U15M3, and ATV12*U22M3 speed drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under speed drives. The ATV12 range meets basic machine requirements united with simplicity.

    Specifications

    Complementary

    Kit Composition
    fixing collars || EMC plate || screws
    Net Weight0.19 kg

    Specifications

    Range Of Product
    Altivar 12 || Altivar Machine ATV320
    Accessory / Separate Part Category
    mounting and fixing accessory
    Accessory / Separate Part Destination
    variable speed drive
    Product CompatibilityATV12H075F1 || ATV12HU15M2 || ATV12HU15M3 || ATV12HU22M2 || ATV12HU22M3 || ATV12PU15M3 || ATV12PU22M3 || ATV320...C variable speed drive 1.1 kW, 200...240 V three phase || ATV320...C variable speed drive 1.5 kW, 200...240 V three phase || ATV320...C variable speed drive 2.2 kW, 200...240 V three phase || ATV320...C variable speed drive 0.75 kW, 525...600 V three phase || ATV320...C variable speed drive 1.5 kW, 525...600 V three phase
    Accessory / Separate Part TypeEMC conformity kits

    Offer Sustainability

    China Rohs Regulation
    X
    Mercury Free
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Rohs Exemption InformationYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
    Reach Free Of SvhcYes

    Contractual warranty

    Warranty
    18 months
