Schneider Electric VW3A9525 EMC Conformity Kit for Variable Speed Drive Size 3, 0.21kg
- MPN: VW3A9525
- PPN: SCH-VW3A9525
CAD
$42.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

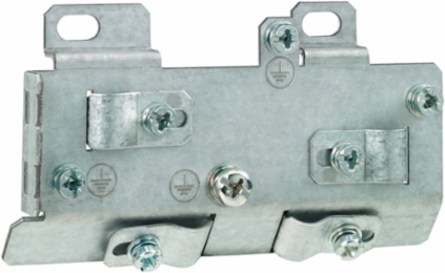

This EMC conformity kit is part of the Altivar Machine ATV12 and ATV320 ranges, an offer of variable speed drives for commercial equipment and simple machines. The metal plate makes the speed drive meet electromagnetic compatibility (EMC) requirements and must be ordered separately. This plate is size 3 (140x46.5mm). It helps organizing cable layout. It weighs 0.21kg. This kit is an accessory for power cables and motor cables. This product is certified by EMC, CE, and UL. This kit is compabible with ATV12*U30M3 and ATV12*U40M3 speed drives. The kit includes one EMC metal plate, clamps and fixing accessories. The metal plate is to be installed under speed drives. The ATV12 range meets basic machine requirements united with simplicity.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Kit Composition
- fixing collars, EMC plate, screws
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Applicability
- Component
- Weee Exclusion Rationale
- Product/component not in scope – not electric/electronic device
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Returnability
- Yes
- Accessory / Separate Part Category
- mounting and fixing accessories
- Accessory / Separate Part Type
- EMC conformity kits
- Package Weight(Lbs)
- 265.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, IT Channel Partner
Market SegmentationCommercial, Industrial
Range Of ProductAltivar Machine ATV320, Altivar 12
Local Publishable Date2026-01-12
Stocking FlagY
Device TypeVariable speed drive - VSD option & accessory
TraceabilityNo
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1927
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Sustainable PackagingNo
Accessory / Separate Part Destinationvariable speed drive
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Product Compatibility
- ATV320...C variable speed drive 4 kW, 525...600 V three phase, ATV320...C variable speed drive 2.2 kW, 380...500 V three phase, ATV320...C variable speed drive 4 kW, 380...500 V three phaseATV12HU30M3, ATV12HU40M3, ATV12PU30M3, ATV12PU40M3, ATV320...C variable speed drive 3 kW, 200...240 V three phase, ATV320...C variable speed drive 4 kW, 200...240 V three phase, ATV320...C variable speed drive 2.2 kW, 525...600 V three phase, ATV320...C variable speed drive 3 kW, 380...500 V three phase
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Altivar Machine ATV320, Altivar 12
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
