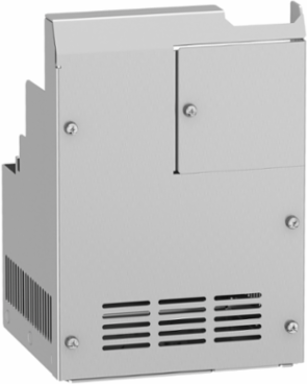

Schneider Electric VW3A95817 kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S4B
Schneider Electric VW3A95817 kit for UL type 1 conformity, Altivar machine ATV320, mounted under variable speed drive ATV320 S4B
- MPN: VW3A95817
- PPN: SCH-VW3A95817
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$75.45/ EA
Description
This UL conformity kit is part of the Altivar Machine ATV320 range, an offer of drives designed for Original Equipment Manufacturers (OEMs). This optional kit enables your Altivar variable speed drive to meet UL type 1 requirements. Its frame size is 4B (155mm/6.1in wide x 220mm/8.66in high, and 146.5mm/5.77in deep). Thanks to this kit, cables can be directly connected to the drive via tubes or cable glands. The shielding is connected inside the kit. It weighs 0.550kg (1.213lb). This kit can be used to ensure UL Type 1 conformity even when the drive is mounted directly on a wall outside the enclosure. It is compatible with ATV320U55N4B and ATV320U75N4B drives. The kit is delivered in one package including fixing accessories. This kit is mounted to the lower part of the drive. The Altivar Machine ATV320 series focus on easy integration for simple and advanced machine requirements with proven motor control and connectivity. ATV320 drives are specifically designed for material handling, packaging, textiles, hoisting, mechanical actuators, and material working.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Of Product
- Altivar
- Accessory / Separate Part Category
- mounting and fixing accessories
- Accessory / Separate Part Destination
- variable speed drive
Product Compatibilityvariable speed drive ATV320...B 5.5 kW, 380...500 V, three phase || variable speed drive ATV320...B 7.5 kW, 380...500 V, three phase
Accessory / Separate Part Typekit for UL type 1 conformity
Environment
- Standards
- UL Type 1
Complementary
- Range Compatibility
- Altivar Machine ATV320
- Mounting Location
- underside of drive
Kit Compositionmechanical device
