Square D 9001KYSS2 Harmony Empty Enclosure Control Station, Stainless Steel, 2 Cut-Outs, 30mm
Square D 9001KYSS2 Harmony Empty Enclosure Control Station, Stainless Steel, 2 Cut-Outs, 30mm
- MPN: 9001KYSS2
- UPC: 785901017493
- PPN: SCH-9001KYSS2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$325.34/ EA
Description

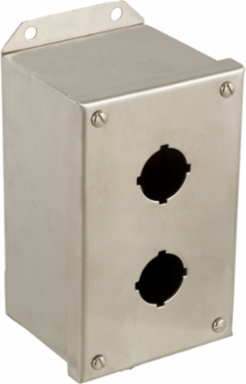

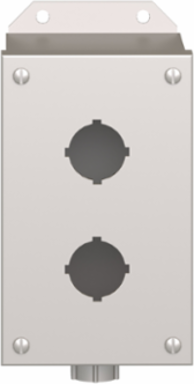

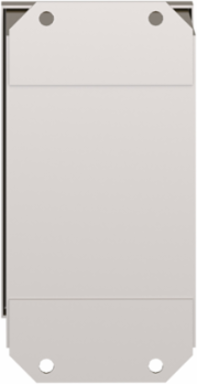

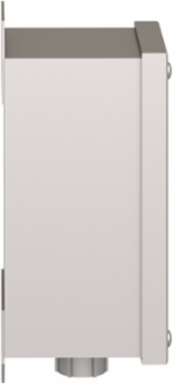

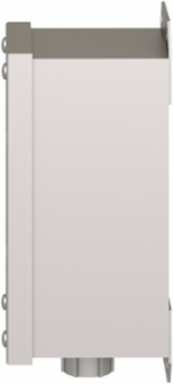

This empty enclosure is a separate component of the range of control and signaling units, Harmony 9001K / 9001SK diameter 30mm. It comprises a stainless steel enclosure with 2 vertical openings diameter 30mm. It is supplied with 1 entry tapped for 3/4'' knockout. This robust control station complies with the requirements of NEMA 1/13/3/4/4X ratings. It weighs 1.370kg. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Overvoltage Category
- II IEC 61140
- Protective Treatment
- TH
Ambient Air Temperature For Storage-40-70 °C
Nema Degree Of ProtectionNEMA 1 || NEMA 12 || NEMA 3 || NEMA 4 || NEMA 4X
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121029EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Product Destination
- for Ø 30 mm control and signalling units
- Net Weight
- 1.37 kg
Materialstainless steel
Specifications
- Number Of Cut-Out
- 2 cut-outs
- Cable Entry
- 1 entry tapped for 3/4'' knockout
- Device Short Name
- 9001K
Range Of ProductHarmony 9001K || Harmony 9001SK
Product Or Component Typeempty enclosure
