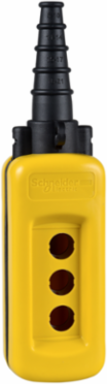

Schneider Electric XACA03H7 Harmony XAC Empty Pendant Control Station, 3 Cut-Outs, IP65

MPN: XACA03H7
PPN: SCH-XACA03H7

$202.97

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony XACA03H7 is a empty pendant control station with 3 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Czechia, France, Mexico, United States

Physical Attributes

Control Station Color	yellow

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Certificate Agency	CSA, GOST, UL, CCC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.4 kg CO2 eq., 0.4381118881
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	2 kg CO2 eq., 2.4015928516
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Control Station Type	double insulated
Electrical Circuit Type	control circuit
Enclosure Type	empty enclosure
Mechanical Durability	1000000 cycles
Product Availability	Stock - Normally stocked in distribution facility
Protective Treatment	TH
Returnability	Yes
Software Version	EIME v5.9.4
Total Lifecycle Carbon Footprint	3 kg CO2 eq.
Control Station Color	yellow
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
Functional-unit Unit	Unit
Energy Model - Manufacturing [A1-a3]	Energy model used: Czech Republic
Energy Model - Use [B6]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Recyclability Potential In %	32
Vertical Operator Cut-out Centre	30 mm
Package Weight(Lbs)	500.000 g
Warranty (In Months)	18

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]	0.1014646465, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.002418143, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	kg CO2 eq., 0
Local Publishable Date	2026-01-12
Stocking Flag	N
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cable Entry	rubber sleeve with stepped entry 8-26 mm
Device Short Name	XACA
Enclosure Material	polypropylene
Guard Rail	without
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	pendant control station
Range Of Product	Harmony XAC
Shock Resistance	100 gn IEC 60068-2-27
Sustainable Packaging	Yes
Vibration Resistance	15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep Code	ENVPEP0709005EN
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Installation [A5]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]	Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Number Of Cut-out	3 cut-outs
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8538100000

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	2.9435875291
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP0709005EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Environmental Disclosure	ENVPEP0709005EN
Ip Degree Of Protection	IP65 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2022-11-01
Psr Version	PSR-0005-ed2-2016 03 29
