Schneider Electric XACA06H7 Harmony XAC Empty Pendant Control Station, Yellow, 6 Cut-Outs, IP65
- MPN: XACA06H7
- PPN: SCH-XACA06H7
CAD
$275.40
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This Harmony XACA06H7 is an empty pendant control station with 6 vertical openings for control circuit. This yellow control station is double insulated and its enclosure material polypropylene. It is part of the range Harmony XAC pendant control stations for diameter 22mm plastic signaling units.
Features

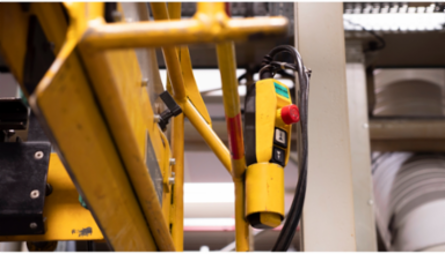

- Specifically engineered with a high-visibility yellow "pistol grip" handle, this pendant station provides a natural, fatigue-reducing hand position for crane and hoist operators. The lightweight but rugged plastic enclosure allows for precise, one-handed control of overhead material handling equipment, significantly improving operator safety and efficiency during repetitive lifting cycles in warehouses or manufacturing plants.
- This versatile station features six dedicated pushbuttons, providing comprehensive control for up/down, left/right, and forward/reverse configurations. Each button is logically spaced to prevent accidental dual-actuation, allowing industrial technicians to execute complex multi-axis maneuvers with high tactile feedback, even while wearing heavy-duty work gloves.+
- Built with a double-insulated, high-impact polycarbonate shell, the XACA06H7 is fully sealed against dust, water jets, and corrosive cleaning agents. Whether your application involves a moisture-heavy food processing line or a gritty outdoor construction site, this station prevents internal contact oxidation and mechanical failure, ensuring a long service life and reduced maintenance overhead.
- Designed for rapid integration into existing control circuits, the internal contact blocks utilize standard screw clamp terminals that provide superior vibration resistance compared to spring-fed alternatives. This "installer-friendly" internal architecture allows industrial electricians to quickly secure 600V control wiring, ensuring a robust electrical connection that won't vibrate loose during heavy crane operation or high-frequency cycling.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France, Mexico, United States
Physical Attributes
- Control Station Color
- yellow
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- GOST, UL, CCC, CSA
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.6 kg CO2 eq., 0.5826888112
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 3 kg CO2 eq., 3.1941184926
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Station Type
- double insulated
- Electrical Circuit Type
- control circuit
- Enclosure Type
- empty enclosure
- Mechanical Durability
- 1000000 cycles
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TH
- Returnability
- Yes
- Software Version
- EIME v5.9.4
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Control Station Color
- yellow
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Czech Republic
- Energy Model - Use [B6]
- Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
- Recyclability Potential In %
- 32
- Vertical Operator Cut-out Centre
- 30 mm
- Package Weight(Lbs)
- 0.665 kg
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.1349479798, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0032161301, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2026-01-12
Stocking FlagN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard

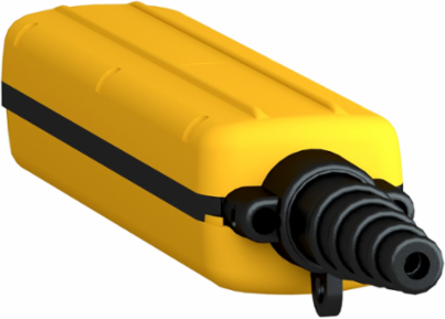

Cable Entryrubber sleeve with stepped entry 8-26 mm
Device Short NameXACA
Enclosure Materialpolypropylene
Guard Railwithout
Overvoltage Categoryclass II conforming to IEC 61140
Product Or Component Typependant control station
Range Of ProductHarmony XAC
Shock Resistance100 gn IEC 60068-2-27
Sustainable PackagingNo
Vibration Resistance15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6
Pep CodeENVPEP0709005EN
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Energy Model - End Of Life [C1-c4]Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168-
Number Of Cut-out6 cut-outs
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538100000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.9149714138
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP0709005EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP0709005EN
Ip Degree Of ProtectionIP65 conforming to IEC 60529
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2022-11-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- pendant control station
Range Of ProductHarmony XAC
ETIM
- ETIM 8
- EC000233
ETIM 9EC000233
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
