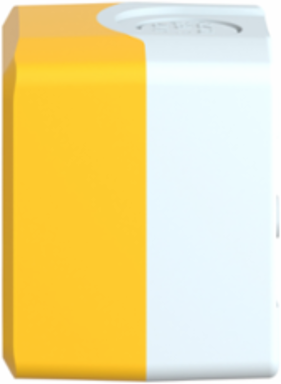

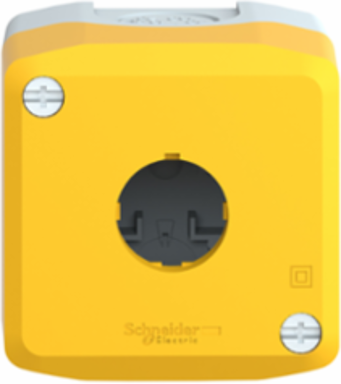

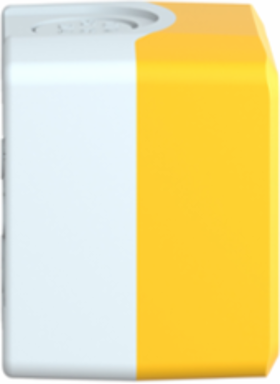

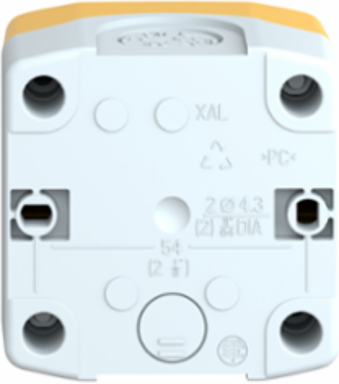

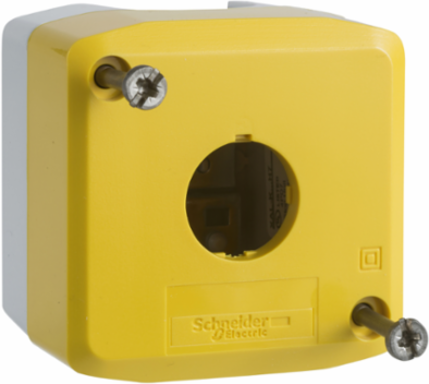

Schneider Electric XALK01H7 Harmony XALK Empty Control Station, 1 Cut-Out, IP66/IP67/IP69K, Yellow

  • MPN: XALK01H7
  • PPN: SCH-XALK01H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $38.28

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XALK empty control station has 1 cut-out for 1 push button / 1 function for controlling of operation in machines. This 1 cut-out yellow empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

    Features

    • The Schneider Electric XALK01H7 features a high-visibility vibrant yellow cover (RAL 1021) engineered specifically for prominent emergency stop and emergency switching off safety functions. This visual alerting system ensures that operators can immediately locate the E-stop button during critical machinery failures or hazardous field events, drastically improving facility reaction times and regulatory workplace safety compliance.
    • Designed with a precision-machined 1-hole 22mm cutout, this empty control station provides flawless structural compatibility with the entire Schneider Electric Harmony XB5 series of plastic pushbuttons, pilot lights, selector switches, and latching mushroom head operators. This modular versatility prevents installation alignment issues, allowing industrial automation technicians and machine builders to rapidly customize single-function control setups with either front- or rear-mounted contact blocks.
    • Built to endure the most demanding process environments, it carries advanced IP66, IP67, IP69, and IP69K ratings alongside heavy-duty NEMA 4X and NEMA 13 protection. This robust sealing system guarantees the unit remains completely dust-tight and fully operational when subjected to high-pressure washdown streams reaching up to 1,015.3 psi (7,000,000 Pa) at elevated temperatures of 131 F (55 C), making it the perfect solution for food processing plants and chemical packaging lines.
    • Molded from premium, impact-resistant polycarbonate, the Harmony XALK01H7 offers exceptional structural rigidity with an IK03 mechanical protection rating and a specialized TH protective treatment for hot, humid environments. This rugged composition actively prevents cracking, structural fatigue, and chemical degradation from oils or corrosive agents, giving field operations a highly reliable, long-term housing that operates flawlessly within a wide temperature range of -40 F to 158 F (-40 C to 70 C).

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCzechia, France, Mexico, United States

    Physical Attributes

    Color Of Base Of Enclosurelight grey RAL 7035)
    Color Of Coveryellow RAL 1021)

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Control Station Applicationemergency switching off function, emergency stop function
    Electrical Composition CodeSF1, SR1, MF1, MR1
    Certificate AgencyUL, CSA
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0228481322
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.8 kg CO2 eq., 0.7875475119
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylefor customer assembly
    Compatibility CodeXALK
    Gcr BridgeXALK01CUST01
    Main Group1 cut-out
    Number Of Horizontal Rows1
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Software VersionEIME v5.8.1
    Total Lifecycle Carbon Footprint0.8 kg CO2 eq.
    Color Of Coveryellow RAL 1021)
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo provide Stop, Start or Combined functions on 10A electrical load for 20 years at 30% use rate with 0.5W power use.
    Functional-unit Unitunité (unit)
    Energy Model - Manufacturing [A1-a3]Energy model used: France
    Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
    Recyclability Potential In %18
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Customizable1, no
    Mounting Of Blockfront mounting, rear mounting
    Carbon Footprint Of The Distribution Phase [A4]0.0156120518, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0007298931, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-03-26
    Stocking FlagN
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Cable Entry1 knock-out for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Device Short NameXALK
    Group Of ProductUL-CSA yellow
    Materialpolycarbonate
    Number Of Vertical Rows1
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeempty control station
    Range Of ProductHarmony XALK
    ReturnabilityYes
    Sustainable PackagingYes
    Color Of Base Of Enclosurelight grey RAL 7035)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]Electricity mix; AC; <lt/> 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity mix; AC; <lt/> 1kV; EU-27
    Number Of Cut-out1 cut-out
    Package Weight(Lbs)121.0 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.8267375891
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506022EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2018-09-01
    Psr VersionPSR-0005-ed2-EN-2016 03 29

    General Attributes

    Product Or Component Typeempty control station
    Range Of ProductHarmony XALK

    ETIM

    ETIM 8EC000200
    ETIM 9EC000200

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
