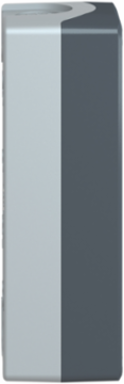

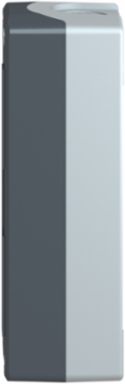

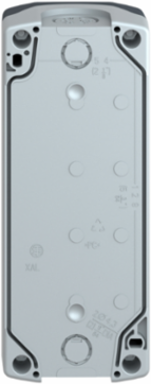

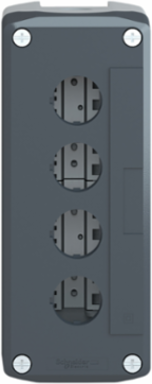

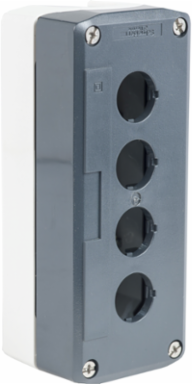

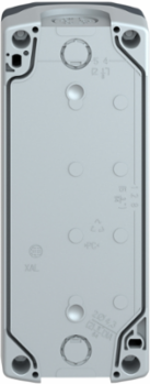

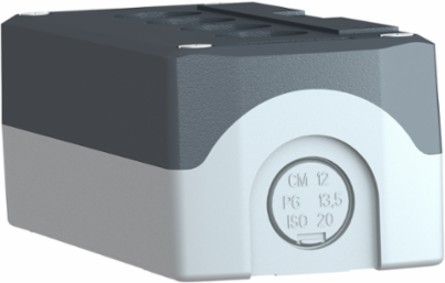

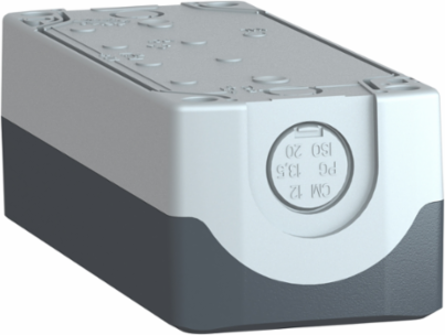

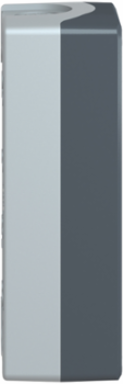

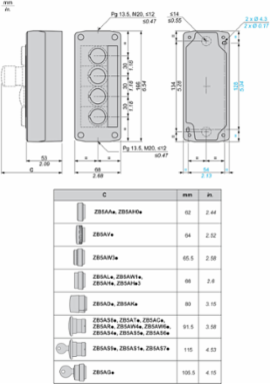

Schneider Electric XALD04H7 Harmony XALD Empty Control Station with 4 Cut-Outs, IP66/IP67/IP69 Rated

  • MPN: XALD04H7
  • PPN: SCH-XALD04H7
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $54.68

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Harmony XALD empty control station has 4 cut-out for 4 push buttons / 4 functions for controlling of operation in machines. This 4 cut-out dark grey empty control station enables machine builders to customize their machines by easily adding any control and signalling functionality units on the enclosure according to the operation required. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. It can be retrofitted with all XB5 series push buttons, pilot lights, selector switches and joysticks. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

    Features

    • This Harmony XALD dark grey enclosure is a blank slate designed for 22mm XB5 plastic pushbuttons, pilot lights, and selector switches. It allows industrial engineers and machine builders to configure a tailored control interface whether for emergency stops or start/stop sequences perfectly suited to the unique operational requirements of your production line
    • Engineered with high-performance polycarbonate and an airtight seal, this station is rated IP66, IP67, IP69, and IP69K, making it completely dust-tight and resistant to high-pressure, high-temperature (80 C) water jets. This heavy-duty protection ensures your controls remain functional in the most punishing food processing, pharmaceutical, or outdoor environments where frequent sanitization is mandatory.
    • Built to meet NEMA 4, 4X, and 13 standards, the XALD04H7 offers superior resistance to chemical corrosion, oil, and grease. The UV-stabilized housing prevents brittleness and fading when exposed to direct sunlight or industrial solvents, providing a long-lasting, low-maintenance solution for chemical plants, car washes, and wastewater treatment facilities.
    • Fully compliant with EN/IEC 60947-5-1 and certified by UL and CSA, this control station is designed to integrate seamlessly into global industrial systems. Its double-insulated construction eliminates the need for a protective earth connection within the box, simplifying the wiring process for electricians while maintaining the highest level of operator safety and regulatory compliance.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginCzechia, France, Mexico, United States

    Physical Attributes

    Color Of Base Of Enclosurelight grey RAL 7035)
    Color Of Coverdark grey RAL 7016)

    Important Information Attributes

    Persona Type IdsBM9, EU, LC, OM, OM8, PB, SC, SI, VR
    Market Segmentation IdCOMMERCIAL, INDUSTRIAL
    Customizable1, no
    Mounting Of Blockfront mounting, rear mounting
    Carbon Footprint Of The Distribution Phase [A4]0.18997355475087782, 0.2 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0011197219004491013, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
    Local Publishable Date2026-01-12
    Stocking FlagY
    Weee ScopeOut
    Eoli Availability DisplayYes
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Cable Entry2 knock-outs for cable entry 14-14 mm2 knock-outs for Pg 13 cable gland and ISO M20 12-12 mm
    Device Short NameXALD
    Group Of ProductUL-CSA grey
    Materialpolycarbonate
    Number Of Vertical Rows4
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typeempty control station
    Range Of ProductHarmony XALD
    ReturnabilityYes
    Sustainable PackagingYes
    Color Of Base Of Enclosurelight grey RAL 7035)
    Pep CodeENVPEP2506022EN
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y20
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Number Of Cut-out4 cut-outs
    Package Weight(Lbs)261.000 g
    Warranty (In Months)18
    Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
    Market SegmentationCommercial, Industrial
    Electrical Composition CodeMR1, SR1, SR2, SF2, MF2, MF1, PF2, PR1, PF1, SF1
    Certificate AgencyCSA, UL
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.6 kg CO2 eq., 0.5564701107997246
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]1 kg CO2 eq., 1.4148773740629854
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy1
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2506022EN
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1930
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Assembly Stylefor customer assembly
    Compatibility CodeXALD
    Gcr BridgeXALD04CUST01
    Main Group4 cut-outs
    Number Of Horizontal Rows1
    Overvoltage Categoryclass II conforming to IEC 60536
    Product Destinationfor XB5 Ø 22 mm control and signalling units
    Protective TreatmentTH
    Resistance To High Pressure Washer7000000 Pa 55 °C 0.1 m
    Software Versionv6.3.0.1-4
    Total Lifecycle Carbon Footprint2 kg CO2 eq.
    Color Of Coverdark grey RAL 7016)
    Database Version2024-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionHarmony XALD dark grey control station is ideal to control stop operation in machines. This dark grey control station enables machine builders to easily add control and signalling functionality on their machines, with permanent modifications or damage to their machine body. It is designed for simple and mass production machines, textiles, packaging, handling small lifting systems, control of garage doors, rolling shutters, smoke extraction vents. It is compatible with Harmony XB5 range push buttons, switches and pilot lights and product is adhering to adhering to international standards with lifetime of 20 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
    Recyclability Potential In %18
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code3926909989

    Environment Attributes Main

    Ambient Air Temperature For Operation-40-70 °C, -40-70 °C
    Ip Degree Of ProtectionIP66 IEC 60529, IP67, IP69, IP69K
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint2.162440761514037
    Environmental DisclosureENVPEP2506022EN
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2506022EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Nema Degree Of ProtectionNEMA 13, NEMA 4X
    Reach Free ShvcYes
    China Rohs RegulationX
    Mercury FreeYes
    Circularity ProfileENVEOLI2506022EN
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep Verification Date2025-06-30
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typeempty control station
    Range Of ProductHarmony XALD

    ETIM

    ETIM 8EC000200
    ETIM 9EC000200

    Contractual Warranty Attributes

    Warranty Period18 months
    Warranty18 months
