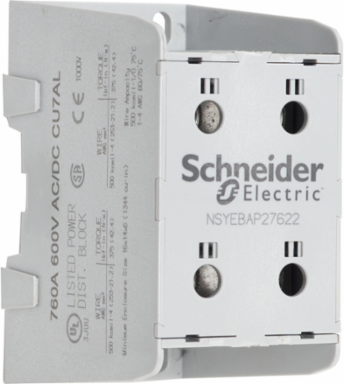

Power Distribution Block, 760A CU / 620A AL, 600V, Panel Mount, Finger Safe
Schneider Electric

Schneider Electric NSYEBAP27622 Power Distribution Block, 760A CU / 620A AL, 600V, Panel Mount, Finger Safe

  • MPN: NSYEBAP27622
  • UPC: 785901714729
  • PPN: SCH-NSYEBAP27622
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $385.77

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    NSYEB power distribution blocks are enclosed IEC versions of our NEMA 9080 power distribution blocks, which are finger safe. The terminals of these power terminal blocks are finger safe from the front according to IP20. They are one pole modular units with an interlocking dovetail feature that enables ganging of the blocks to create multipole configurations according to application requirements. This block has a Short-Circuit Current Ratings (SCCR) of up to 100 kA with fuses and circuit breakers. Refer to the catalog for details on this. The lugs in these blocks are available with either copper or aluminum. This block has a tin plated aluminum lug. The line side lug of this block is rated to 760A at 600 V when copper wire is used and 620A at 600 V when aluminum wire is used. Each of the two line side terminals will accept 4 AWG to 500 kcmil copper or aluminium wires. Each of the two load side terminals will accept 4 AWG to 500 kcmil copper or aluminium wires. This block can be mounted directly to a panel. This block is 4.63 inches tall, 2.61 inches wide and 3.35 inches deep. This block is UL Listed, CSA cerified and RoHS compliant.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    United States
    Depth3.35 in

    Physical Attributes

    Wire Stripping Length
    line: 1.5 in, load: 1.5 in
    Color Of Enclosuregrey

    Complementary Attributes

    Line Rated Current
    760-760 A copper620-620 A aluminium

    Important Information Attributes

    Persona Type Ids
    LC, OM8, PB, SI
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Number Of Cables
    line 2 , 4 AWG...500 kcmil, copper or aluminium, load 2 , 4 AWG...500 kcmil, copper or aluminium
    Tightening Torque
    load 375 lb.in, 4 AWG...500 kcmil, aluminium, line 375 lb.in, 4 AWG...500 kcmil, copper, line 375 lb.in, 4 AWG...500 kcmil, aluminium, load 375 lb.in, 4 AWG...500 kcmil, copper
    Connections - Terminals
    load lug 375 lbf.in 4 AWG...500 kcmil aluminiumline lug 375 lbf.in 4 AWG...500 kcmil copper, line lug 375 lbf.in 4 AWG...500 kcmil aluminium, load lug 375 lbf.in 4 AWG...500 kcmil copper
    Local Publishable Date
    2026-06-27
    Stocking Flag
    N
    Weee Scope
    In
    Scope Perimeter
    Outside of Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    Yes
    Rohs Eur Conformity Date
    1911
    China Rohs In Scope
    No
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    2
    Function Option
    Standard
    Dielectric Strength
    1000 V 240 mm² IEC 60947-7-1
    Energy Efficiency Optimized
    False
    Material
    thermoplastic: block
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    NSYEB
    Sustainable Packaging
    Yes
    Height Nominal
    4.63 in
    [Ue] Rated Operational Voltage
    600 V AC/DC
    Halogen-free Status
    Halogen free product
    Package Weight(Lbs)
    0.41 kg
    Warranty (In Months)
    18
    Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
    Market SegmentationCommercial, Industrial
    Number Of Terminals2 line, 2 load
    Certificate AgencyCE, CSA file 70361 class 6228 01, UL listed file E323110 CCN QPQS
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticYes
    Tier Id2
    Function Option IdSTANDARD
    Product Kit IdentifierN
    Electrical Connectiontin plated aluminium lugs
    Fixing Modeby screws 1/4 inch
    Mounting Supportpanel
    Product Or Component TypePower Distribution Block
    ReturnabilityYes
    Color Of Enclosuregrey
    Width Nominal2.61 in
    Short-circuit Current100 kA
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538904000

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Halogene Performance
    Halogen free product
    Toxic Heavy Metal Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    Yes
    Product Compatibility
    NSYEBP500 500 kcmil)
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Ambient Air Temperature For Operation-40-257 °F, -40-257 °F
    Reach Free ShvcYes
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Halogen Content PerformanceHalogen free product
    Packaging Without Single Use PlasticYes
    Reach Free Of SvhcYes

    General Attributes

    Product Or Component Type
    Power Distribution Block
    Range Of ProductNSYEB
