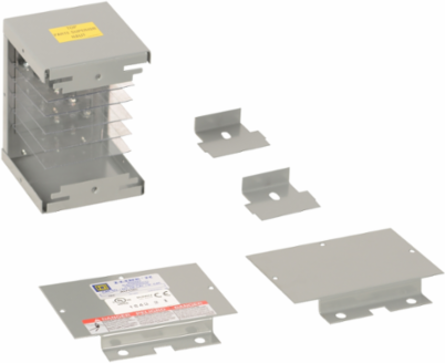

![End cap, I-Line Busway, 1600A, 600VAC, 3 phase, 4 wire, feeder, copper [TAA]](https://images.province-electric.com/SCH-ACF67EC/end-closure-i-line-busway-medium.webp)
Documentation & Downloads
Square D ACF67EC End cap, I-Line Busway, 1600A, 600VAC, 3 phase, 4 wire, feeder, copper [TAA]
- MPN: ACF67EC
- UPC: 785901816140
- PPN: SCH-ACF67EC
CAD
$1072.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. I-Line plug-in busway has options from 225A to 600A with aluminum or copper conductors. These busways are constructed in three-pole and four-pole neutral configurations for system voltages of 600 volts and are rated to allow 100% of the current to flow. This end cap is rated 1600A, that is ideal for 3 phase, 4 wire commercial or industrial applications. As an accessory, it is designed to cap off the end of a busway run. This end cap can be used with copper busways. This end cap meets the UL 857 standard, the CSA C22.2 No 27 standard and the IEC 61439-6 standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Compliance|TAA Compliant | BAA Compliant via COTS
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL 857CSA C22.2 No 27:1994, IEC 61439-6
- Local Publishable Date
- 2025-11-19
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- End Closure
- Returnability
- Yes
- Pep Code
- ENVPEP1407015EN
- Length Total
- 7.24 in
- [Ue] Rated Operational Voltage
- 600 V AC/DC 50/60 Hz
- Package Weight(Lbs)
- 2.672 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterOutside of Europe
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1911
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Energy Efficiency OptimizedFalse
Product Destinationbusbar trunking 1600-1600 A copper end caps
Range Of ProductI-Line
Sustainable PackagingNo
Height Nominal7.06 in
Width Nominal1 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8547900040
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1407015EN
General Attributes
- Product Or Component Type
- End Closure
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
