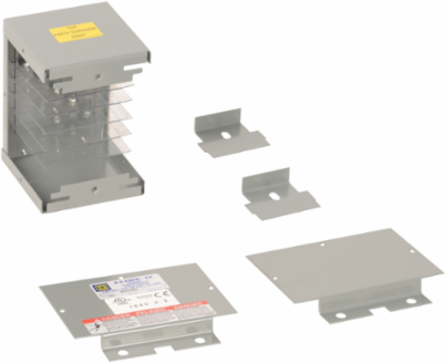

Square D ACF43EC End cap, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, feeder [TAA]
![End cap, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, feeder [TAA]](https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/f9314513bde7b9c70e43ae0735d38111913df60b-medium.png)
Square D ACF43EC End cap, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, feeder [TAA]
- MPN: ACF43EC
- UPC: 785901816102
- PPN: SCH-ACF43EC
- UNSPSC: 39131701
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$932.48/ EA
Description
I-Line™ Busway offers a complete line of compatible, sandwich-type feeder and plug-in busway lengths and fittings. This end enclosure line current rating is 800A with aluminium and 1000A with copper conductors, that make it idle for commercial or industrial applications. As an accessory, its design is to house and support the insulation of busbars from potential faults. UL has certified the products performance to the data specifications listed in the product datasheet.
Features
- I-Line® panelboards provide flexibility and versatility for feeding lighting and appliance panelboards
- Easy to install and provide busawy protection
- Product characteristics conformity is certified by the UL and CSAs
- This product is TAA, and BAA via COTS compliant.
Specifications
Conformance Attributes
- Standards
- UL 857, CSA C22.2 No 27:1994, IEC 61439-6
Important Information Attributes
- Persona Type Ids
- LC, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Product Destination
- busbar trunking 800-800 A aluminium end caps, busbar trunking 1000-1000 A copper end caps
- Local Publishable Date
- 2025-11-19
- Scope Perimeter
- Outside of Europe
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- No
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Package Weight Lbs
- 1.955 kg
- Product Or Component Type
- End Closure
- Returnability
- Yes
- Ue Rated Operational Voltage2
- 600 V AC/DC 50/60 Hz
- Stocking Flag
- Y
- Pep Code
- ENVPEP1407015EN
- Ue Rated Operational Voltage5
- 600 V AC/DC 50/60 Hz
Persona Type NamesContractor, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductI-Line
Sustainable PackagingNo
Medium DescEnd cap, I-Line Busway, 800A, 600VAC, 3 phase, 4 wire, feeder [TAA]
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- Reach Free SHVC
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1407015EN
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1407015EN
China ROHS RegulationProduct out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardYes
Reach Free Of SVHCYes
General Attributes
- Product Or Component Type
- End Closure
Range Of ProductI-Line
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Compliance
- TAA Compliant | BAA Compliant via COTS
