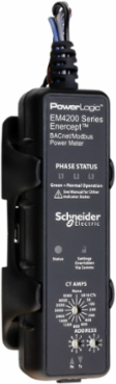

Schneider Electric METSEEM4236 PowerLogic EM4200 Enercept Meter Class 0.2S, 50-5000A, Modbus/BACnet
- MPN: METSEEM4236
- PPN: SCH-METSEEM4236
CAD
$503.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The PowerLogic EM4200 Series Enercept power and energy meter is a unique compact retrofit solution for measuring energy data. ANSI version, can be associated with an optional fuse pack. Designed for simplicity, the EM4200 has flexibility of a wide range of Current Transducers to match most applications from 50-5000A. This billing-rated, four-quadrant meter offers BACnet and Modbus communication protocols and supply power options from 90-480VAC. ANSI C12.1 rated and UL 61010-1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Costa Rica, Mexico, United States
Depth35.81 mm
Communications & Management Attributes
- Communication Of Data
- remote control orders, total energy, net energy
Communication Port ProtocolModbus RTU 9600 bauds...115200 bauds (automatic detection), BACnet MS/TP 9600 bauds...115200 bauds (automatic detection)
Physical Attributes
- Wire Stripping Length
- 6 mm
Important Information Attributes
- Control Type
- ADDRESS 1-99 rotary, CT AMPS 5-5000 rotary
- Function Available
- external synchronisation to communication, fixed or rolling block
- Measurement Category
- category III 277-277 V, category III 300-300 V
- Metering Type
- active, reactive, apparent energy (signed, four quadrant), apparent power S, S1, S2, S3, demand power P, Q, S, active power P, P1, P2, P3, reactive power Q, Q1, Q2, Q3, power factor, average current Iavg, peak demand power PM, QM, SM, frequency, voltage U21, U32, U13, V1, V2, V3
- Mounting Support
- enclosure, DIN rail
- Provided Equipment
- bracket for support, hook
- Connections - Terminals
- input/output plug-in connector bottom) 0.2-1.5 mm², current transformer plug-in connector bottom) 0.2-1.5 mm², communication plug-in connector bottom) 0.2-1.5 mm²
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 0.9755763687219109
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 19 kg CO2 eq., 18.58429464368119
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=PLSED310121EN&p_File_name=PLSED310121EN_Web.pdf, PLSED310121EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- Y
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Device Application
- power monitoring
- Display Type
- Without Display
- Form Factor
- flex
- Measurement Current
- 50-5000 A
- Product Name
- PowerLogic EM4200
- Range
- PowerLogic
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 77 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 119.136
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Width Nominal
- 46.63 mm
- Package Weight(Lbs)
- 681.82 g
- Warranty (In Months)
- 18
Electromagnetic Compatibilityimmunity to radiated fields conforming to EN 61326-1conducted and radiated emissions conforming to FCC Part 15 class A, conducted and radiated emissions conforming to EN 61000-6-4, conducted and radiated emissions conforming to EN 61326 + A1, immunity to conducted disturbances conforming to EN 61000-6-2, immunity to conducted disturbances conforming to EN 61326-1, immunity to radiated fields conforming to EN 61000-6-2
Local Signallingstatus LED green and red), line fault 3 LED green, orange and red), dial pointer indication LED Yellow), RX/TX 2 LED green, orange and red)
Measurement Voltage90-90 V AC 45...65 Hz minimum per phase, 480-480 V AC 45...65 Hz between phases, 300-300 V AC 45...65 Hz between phase and neutral
Mounting Modeby screws, clip-on, by hook
Network Frequency50 Hz, 60 Hz
Certificate AgencyCE conforming to EN 61010-1, cULus conforming to UL 61010-1, BTL, ANSI
Carbon Footprint Of The Distribution Phase [A4]0.1970375204382896, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.01432667673015853, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]57 kg CO2 eq., 57.2988440273964
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Field Service DivisionDPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2506060EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2036
China Rohs In ScopeNo
Without Single Use PlasticNo
Product Kit IdentifierN
Device Short NameEnercept
Energy Efficiency OptimizedFalse
Frequency Measurement Range45-65 Hz
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typeenergy meter
ReturnabilityYes
Sustainable PackagingNo
Type Of CableANSI cable
Pep CodeENVPEP2506060EN
Pep Verification Date2025-10-29
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Height Nominal152.36 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Operating Altitude
- < 9842.52 ft (3000 m), < 9842.52 ft (3000 m)
- Reach Free Shvc
- Yes
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -30-70 °C-30-70 °C
- Environmental Disclosure
- ENVPEP2506060EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP2506060EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint77.07007923696796
Circularity ProfileENVEOLI2506060EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity0-95 %
Pep Verification Date2025-10-29
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Provided Equipment
- bracket for support, hook
Product Or Component Typeenergy meter
ETIM
- ETIM 8
- EC001506
ETIM 9EC001506
Output Attributes
- Number Of Outputs
- 0
Input Attributes
- Analogue Input Type
- current 0.333 V (impedance 33 kOhm), voltage (impedance 2.5 MOhm)single phase, voltage (impedance 5 MOhm)phase to phase
Number Of Inputs0
